HF Locker - Dual Tank Welding Cart Kit
HF Locker - Dual Tank Welding Cart Kit
354 GIVEAWAY ENTRIES
Couldn't load pickup availability

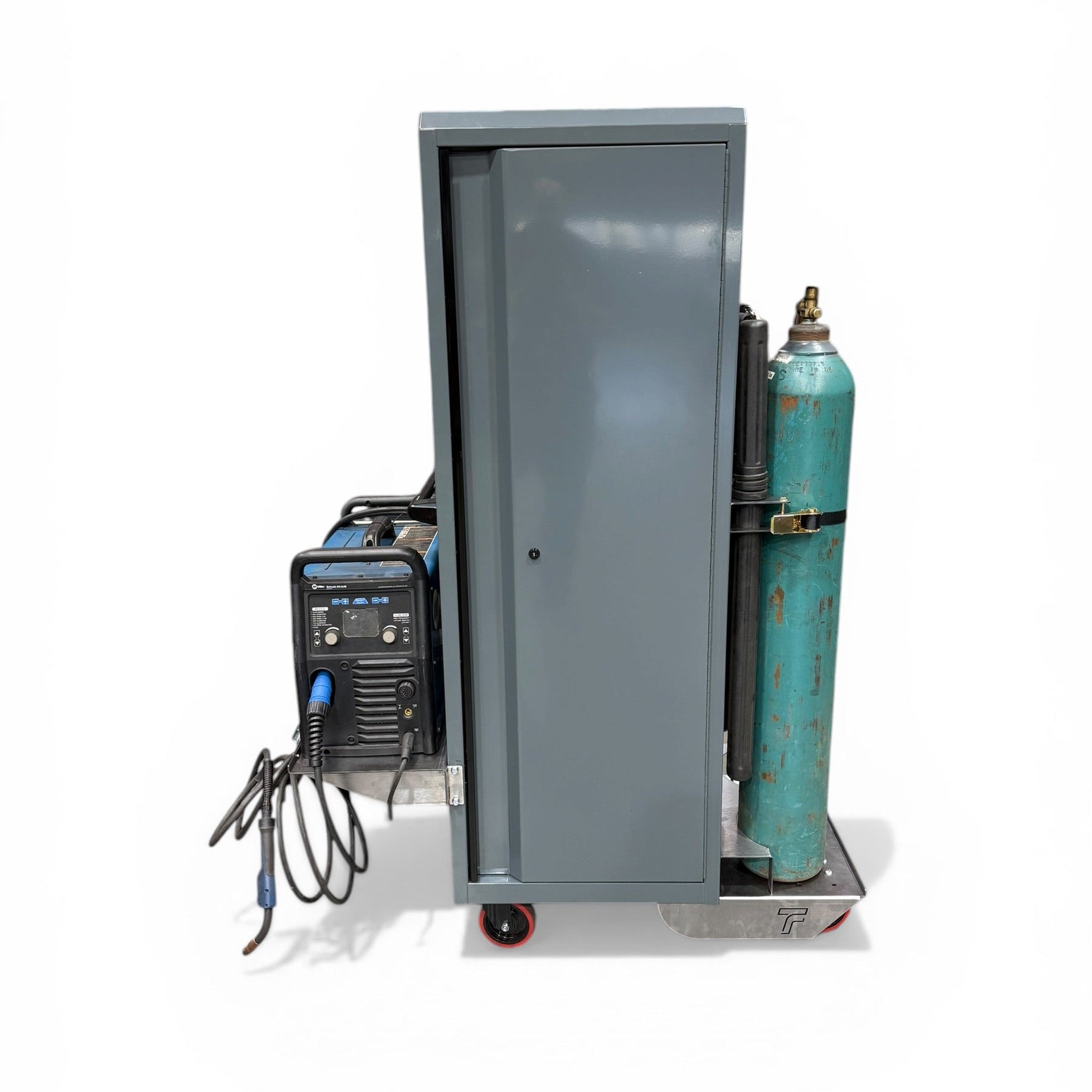

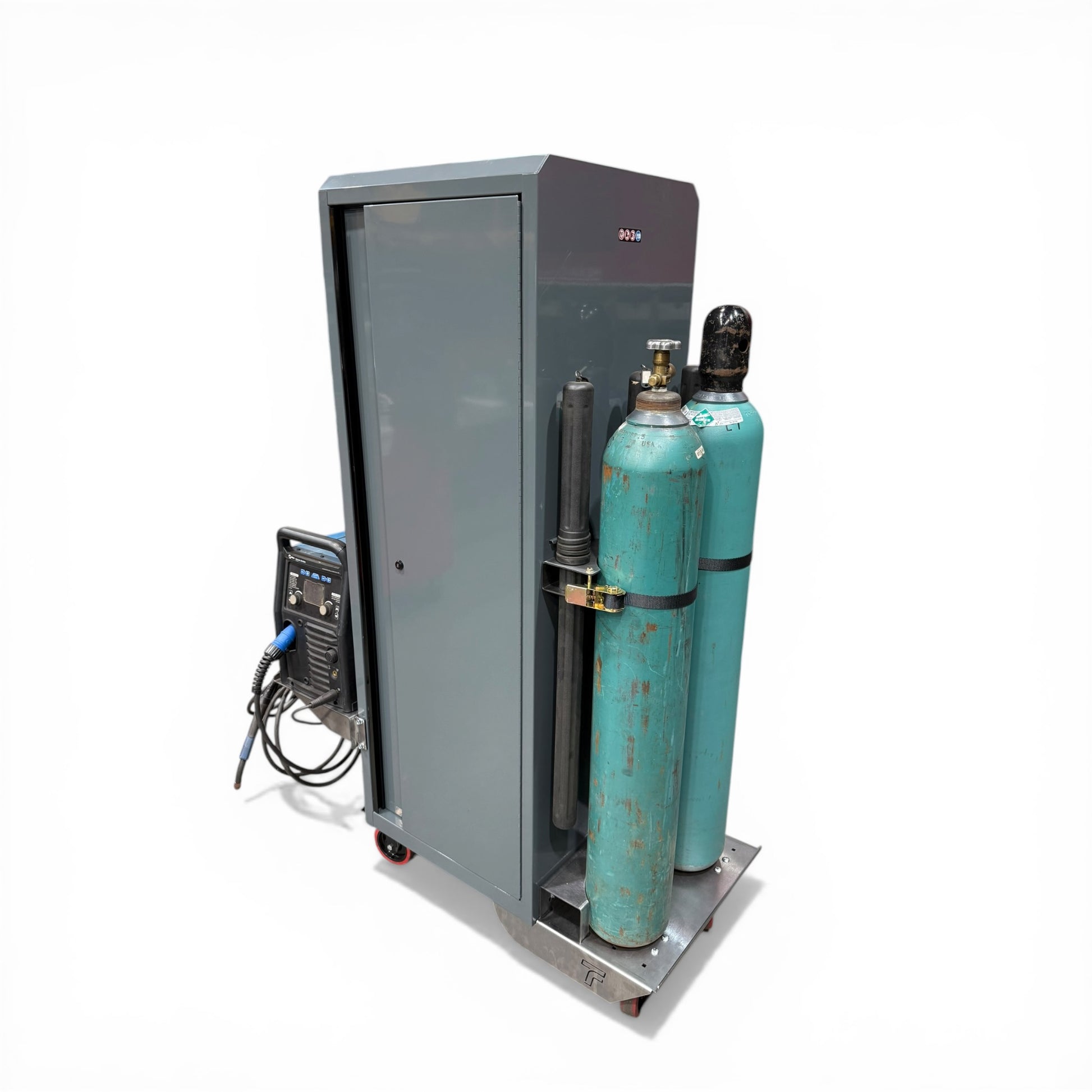

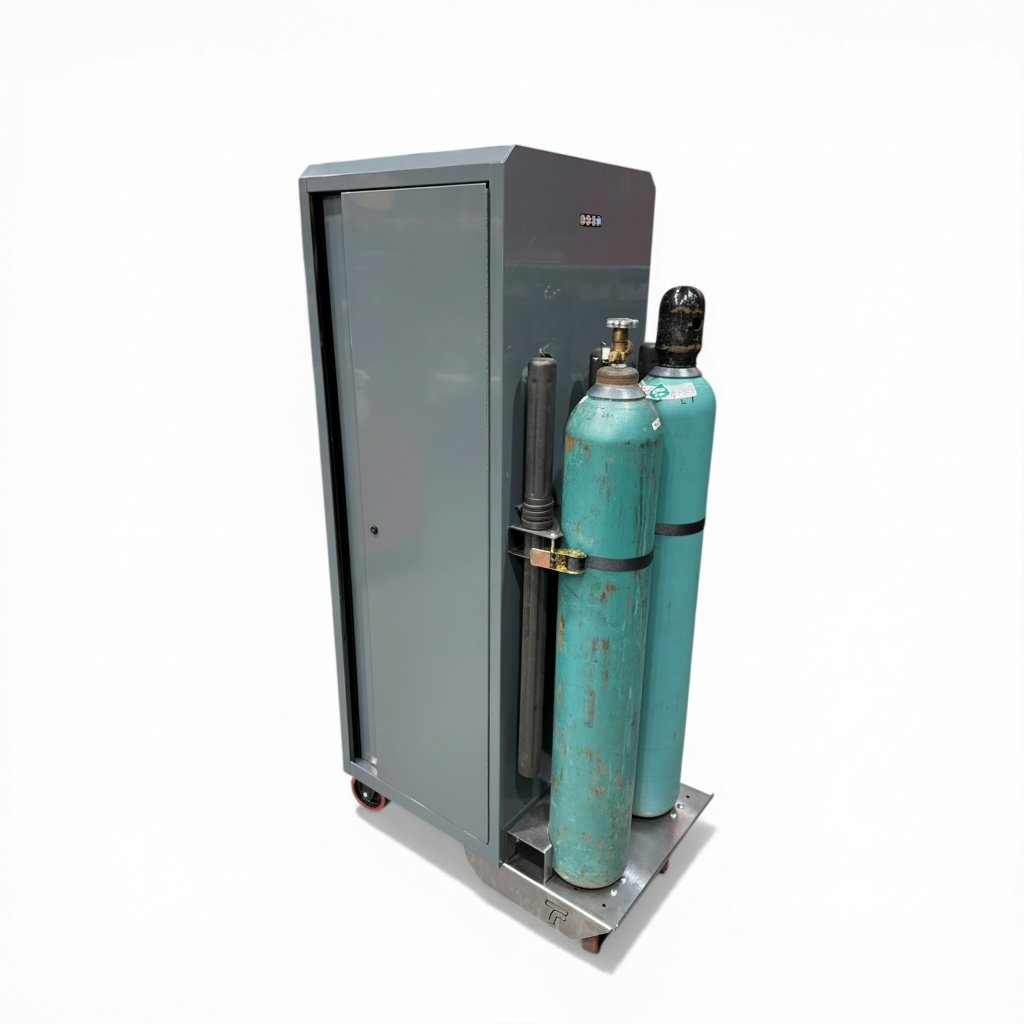

This welding cart kit converts your Harbor Freight 22" Locker into a dual-tank welding cart. Built from 11-gauge steel for strength, it accepts up to 9-1/4" tanks. The top mount has ratchet straps to secure your bottles and 2 TIG rod holder locations, with holes measuring 2-1/8" to fit standard 2" rod holders. The kit can be mounted on either side of the locker or on the back.
Cut locker flanges if present
Some lockers have a flange on the same side as the holes used to connect the locker to a toolbox. If yours has this flange, cut it off with a cutoff wheel for this kit to work — it doesn't affect the locker's strength, since the original design didn't include it.
Features
Ratchet-strap top mount — securely holds two tanks up to 9-1/4" size
2 TIG rod holder ports — sized 2-1/8" to fit standard 2" rod holders
Mounts to either side of the locker or the back
Built from 11-gauge steel for durability
Raw, unpainted steel
Caster Options
Option A: 4" all-swivel casters (2 swivel with brakes, 2 swivel) — keeps the cabinet low with a smooth roll.
Option B: 5" casters included, matching the height of Series 3 27" and 42" toolboxes for a clean, uniform workspace. Add our 2-1/2" spacer accessory to raise them to match 56" or 72" toolbox height.
Option C: Drilled to match the stock casters used on 56" and 72" toolboxes — buy casters directly from Harbor Freight's parts store. These sit 2-1/2" taller than 27"/42" casters, so no spacer is needed. Casters may look slightly different than pictured.
Compatibility
Harbor Freight 22" Locker
What's included
Top and bottom tank mounts, ratchet straps, casters (per your chosen option), mounting hardware

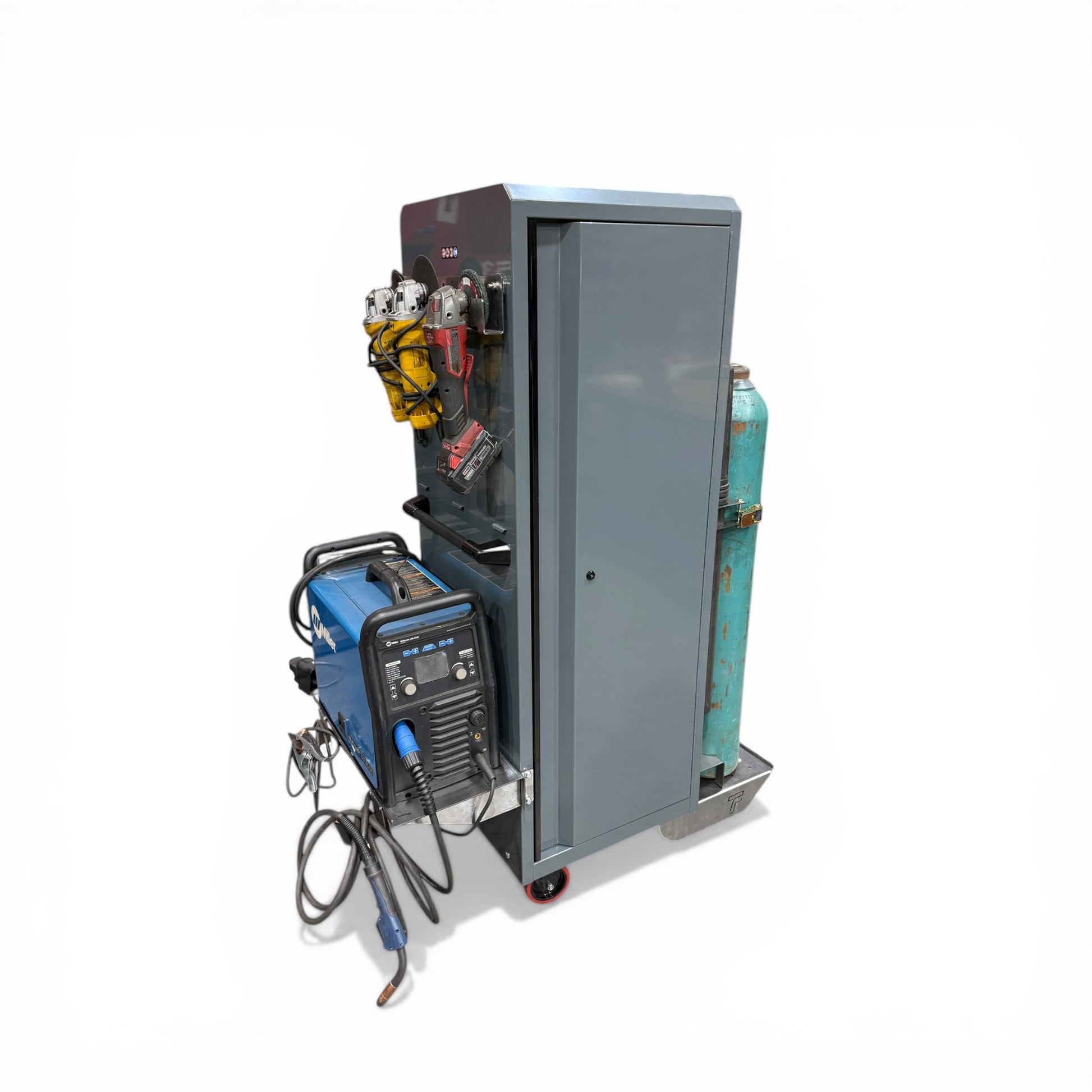

Not included: locker, shelf, and grinder holder shown in some photos (sold separately)
Installation note: Harbor Freight carts can vary slightly between units, so you may need to make small adjustments. Leave all mounts loose until everything is in place, then tighten down.
