HF End Cabinet - Dual Tank Cart Kit (With Casters) - Harbor Freight Grey Powder Coat
HF End Cabinet - Dual Tank Cart Kit (With Casters) - Harbor Freight Grey Powder Coat
534 GIVEAWAY ENTRIES
Couldn't load pickup availability

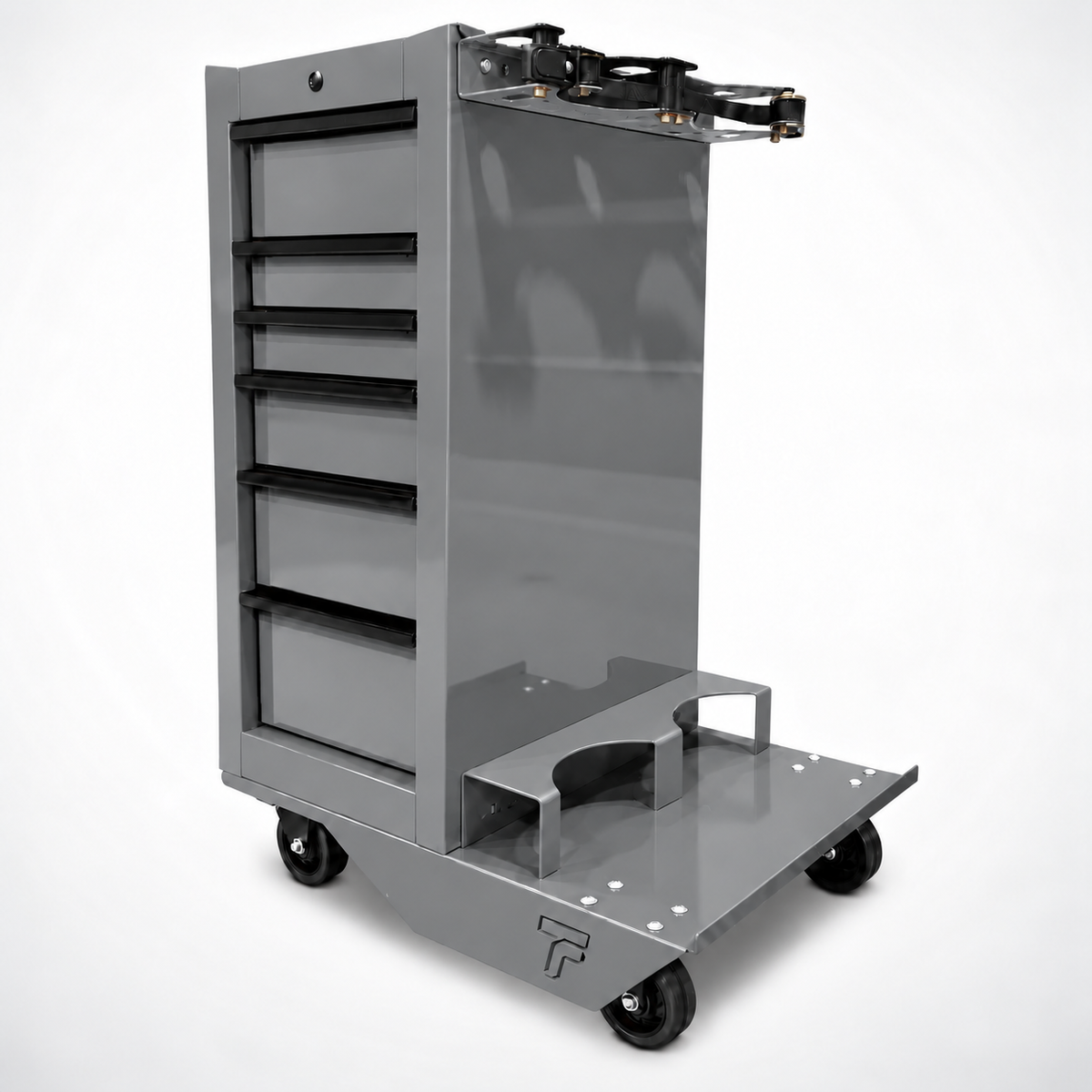

This welding cart kit converts your Harbor Freight Series 3 15" End Cabinet into a dual-tank welding cart. Built from 11-gauge steel for strength, it includes a top mount with ratchet straps to secure your bottles, a bottom mount, and 3 TIG rod holder locations. Casters and hardware are included.
Choose your casters at checkout
Several caster options are available. If the casters shown in the photos are out of stock, we'll substitute something similar without notice, but we always try to ship the ones pictured.
Powder coated: The kit, handles, and lead hangers are powder coated, which is why prices are higher than our standard kits.
Powder coating lead time: Powder coated kits take a little longer to ship than the raw steel version. The powder coating is done by a third-party supplier.
Features
Ratchet-strap top mount — secures two tanks up to 9-1/4" (T) size
3 TIG rod holder locations — holes measure 2-1/8" to easily fit a 2" TIG rod holder
Hardware included — plus (2) 5/16" rivnuts for securing the top mount
Harbor Freight Grey powder coat finish — on 11-gauge steel
Dimensions
Kit: 20-3/8" W x 16-7/8" L x 7" T
Toolbox with kit: 26-1/2" x 22"
Adds 11-3/4" to the tank side of your cart
Compatibility
Harbor Freight Series 3 15" End Cabinet
What's included
Top mount with ratchet straps, bottom mount, casters (your choice of option), mounting hardware, (2) 5/16" rivnuts, plus any handle or lead hangers you choose above
Not included: cart, machines, tanks
Installation note: The top mount needs to be secured with rivets, sheet metal screws, or rivnuts. We build in extra adjustment in the holes and slots, but Harbor Freight carts aren't all exactly the same, so small adjustments may be needed. Leave all mounts loose until everything is in place, then tighten down.
