HF Series 3 Cart - Dual Tank Welding Cart Kit
HF Series 3 Cart - Dual Tank Welding Cart Kit
252 GIVEAWAY ENTRIES
Couldn't load pickup availability

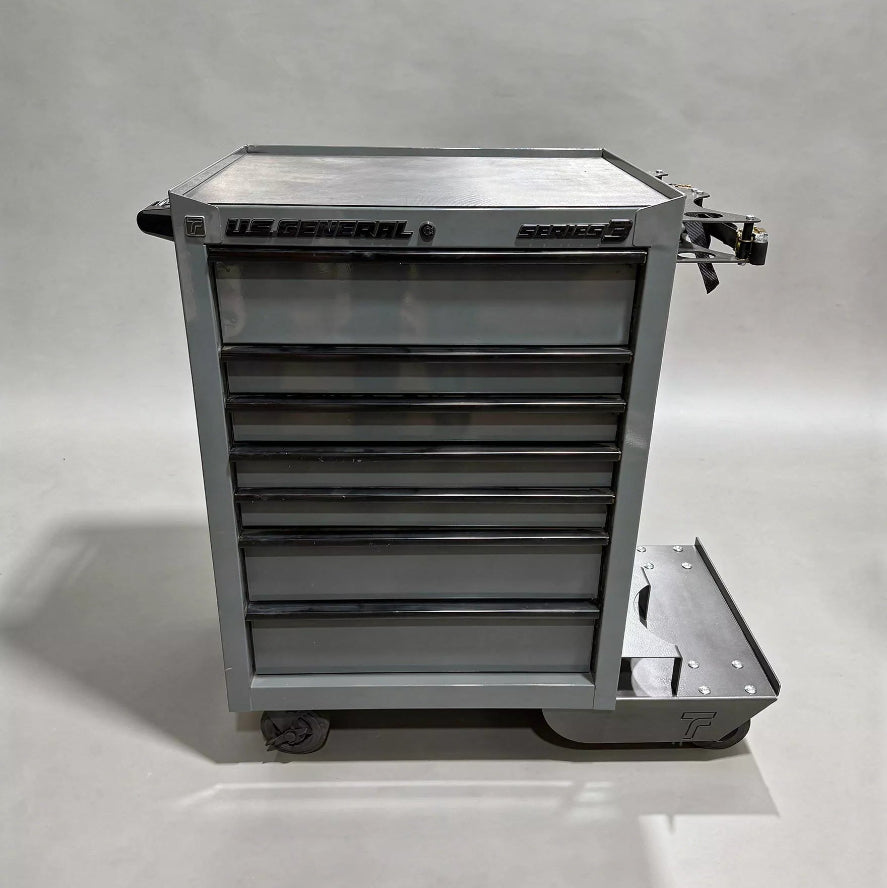

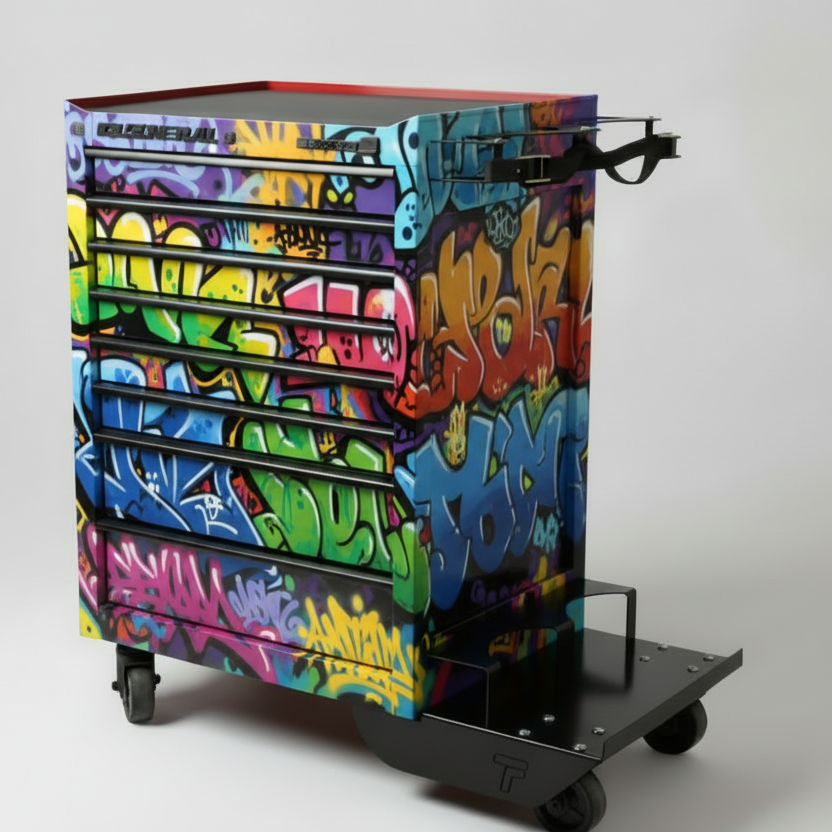

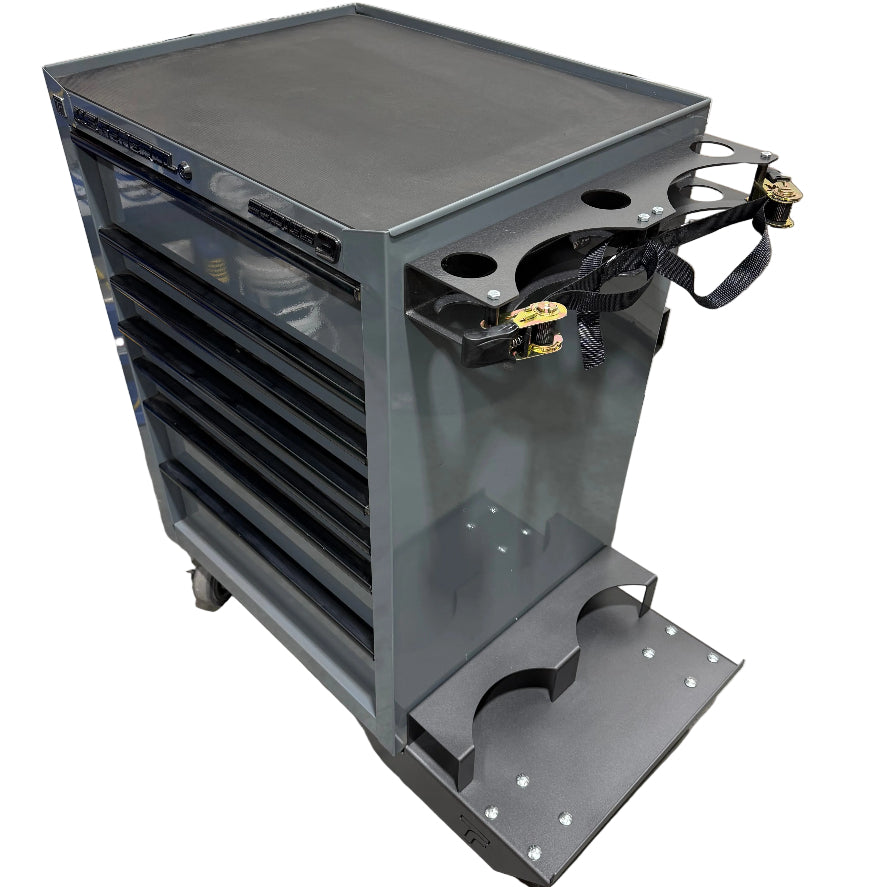

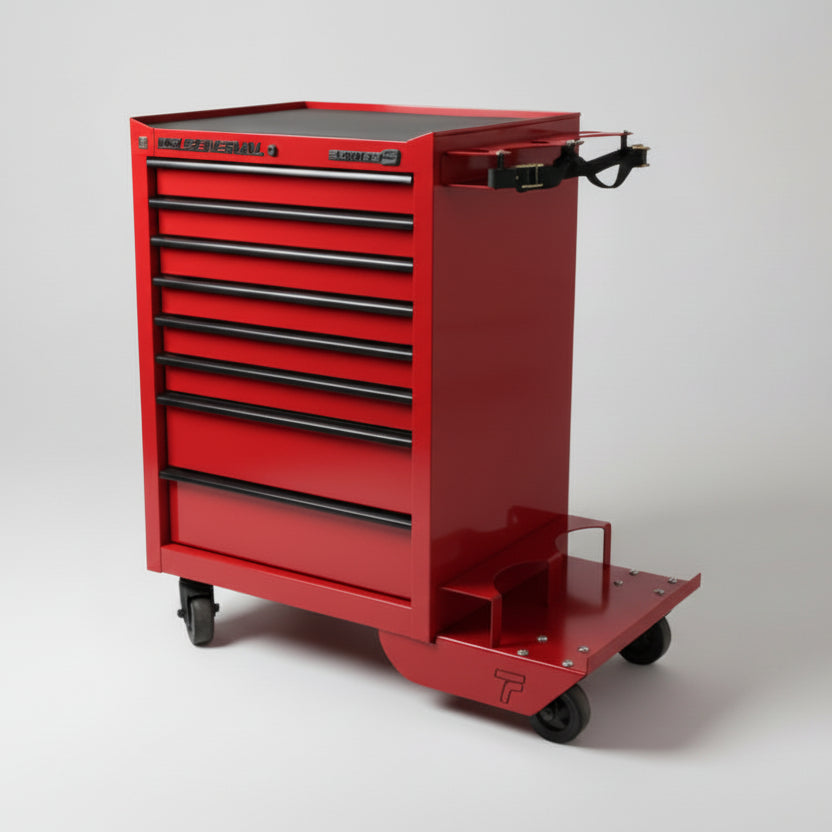

Convert your Harbor Freight Series 3 27" or 42" Toolbox into a proper dual-tank welding cart. This kit bolts on using the cart's existing holes — no welding required — and includes a top mount with ratchet straps to secure two bottles, plus built-in TIG rod holder mounts.
No welding required
Bolts directly onto your cart's existing holes for a straightforward install.
Features

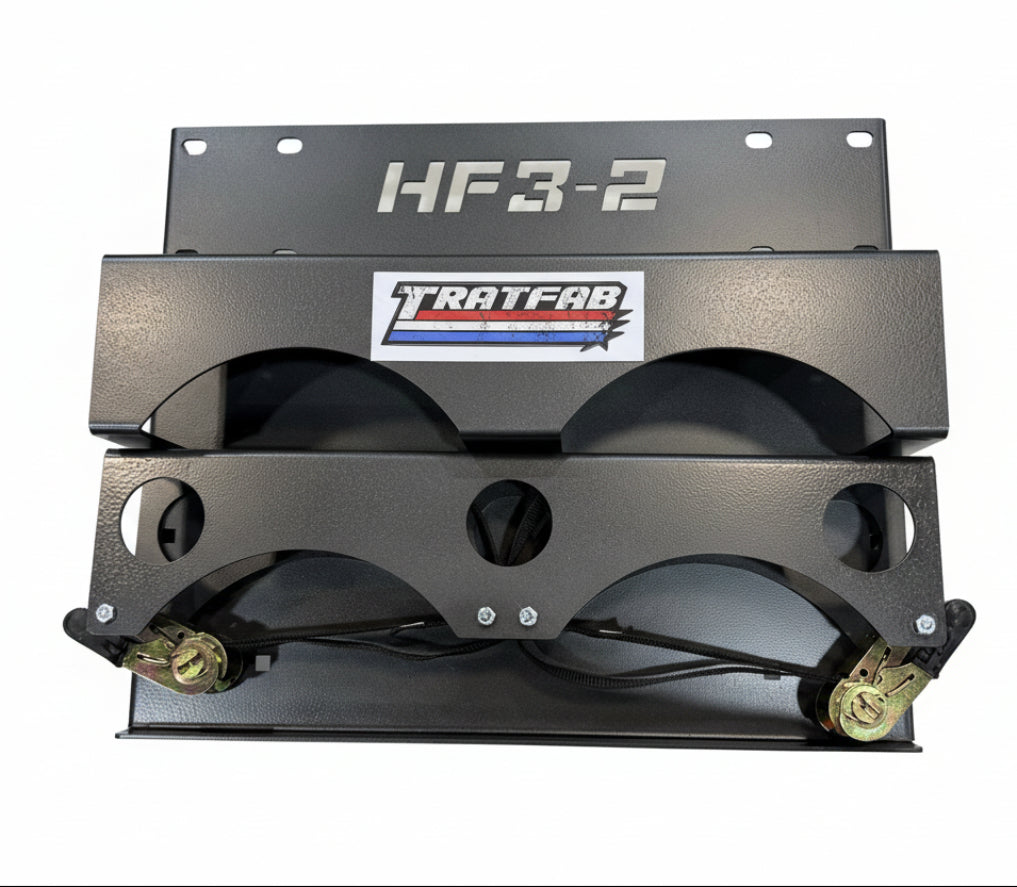

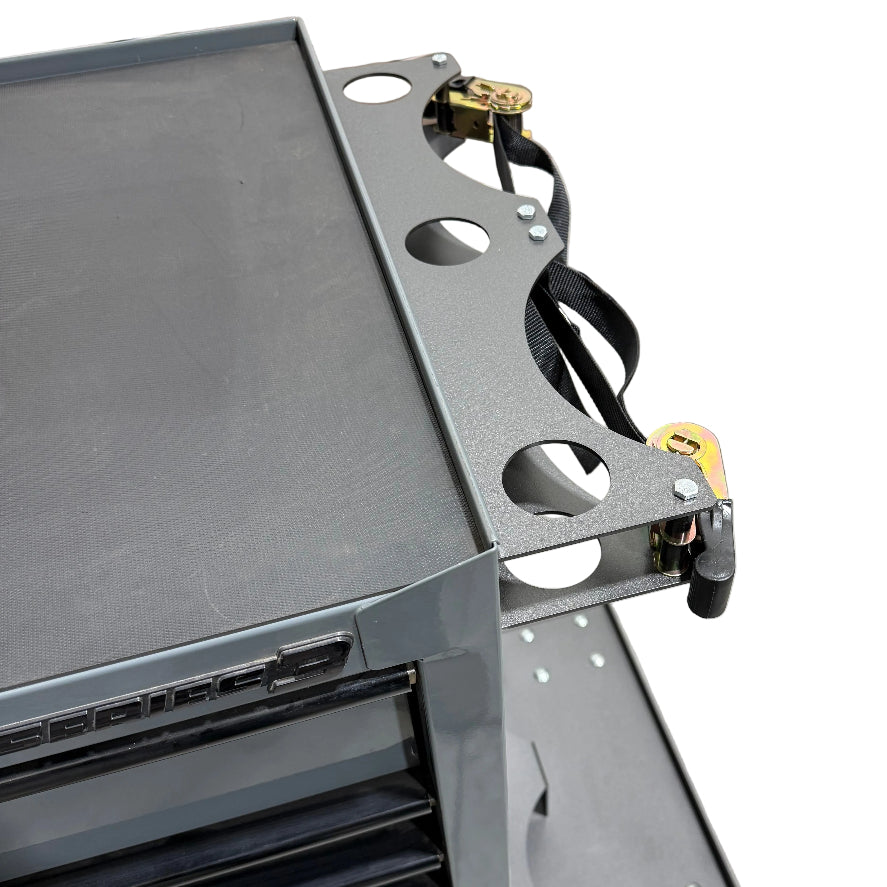

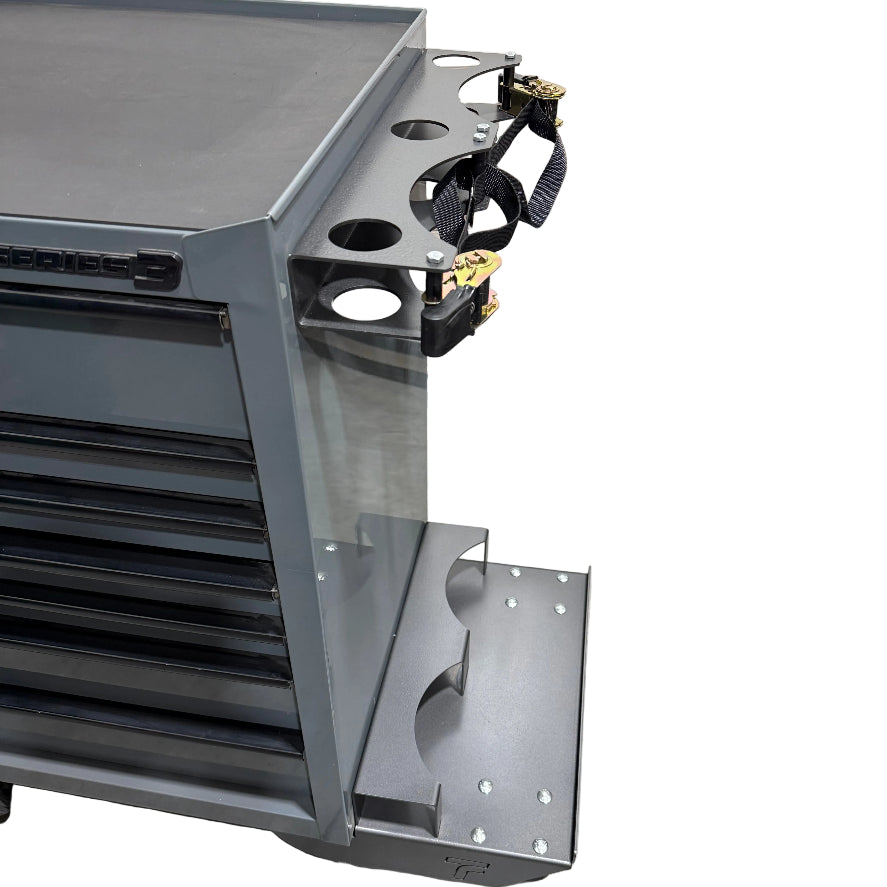

Ratchet-strap top mount — securely holds two tanks up to 9-1/4" (T) size
3 TIG rod holder ports — sized 2-1/8" to fit standard 2" rod holders
No-weld install — uses the cart's existing mounting holes
Caster relocation hardware included — 3/8" carriage bolts and nuts for the new bottom deck
Raw, unpainted 11-gauge steel
Dimensions
20-3/8" W x 16-7/8" L x 7" H
Adds 11-3/4" to the tank side once installed
Compatibility

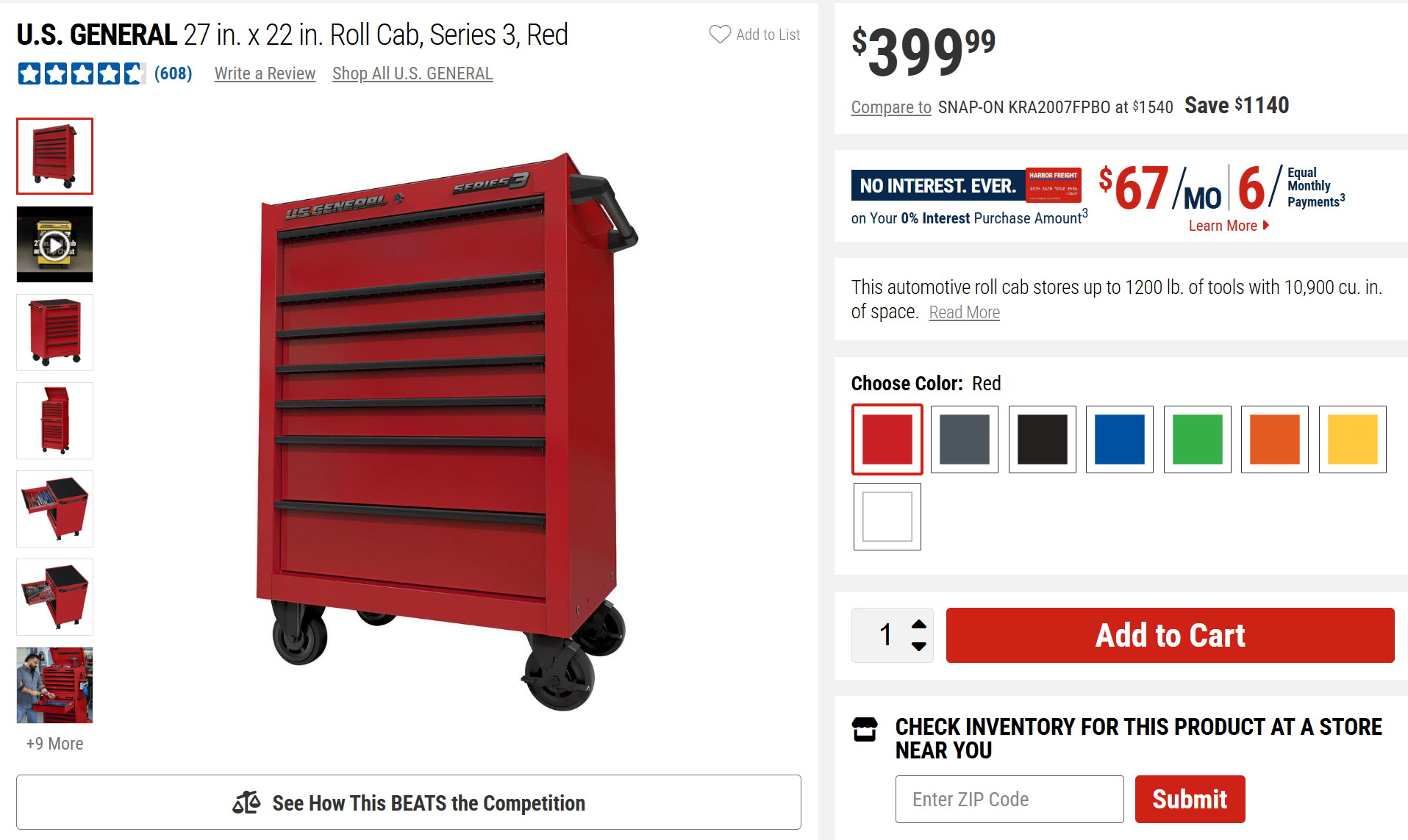

Harbor Freight Series 3 27" or 42" Toolbox
What's included
Top and bottom tank mounts, ratchet straps, caster relocation hardware
Not included: tool box, tanks, machines, shelf, and lead hangers (sold separately)
Installation note: Harbor Freight carts can vary slightly between units, so you may need to ream out a hole or slot for a proper fit. Leave all mounts loose until everything is in place, then tighten down.
Great kit, easy to assemble (note: put swivel casters on opposite side of the tank shelf). Its great to have the ability to organize your welding gear.

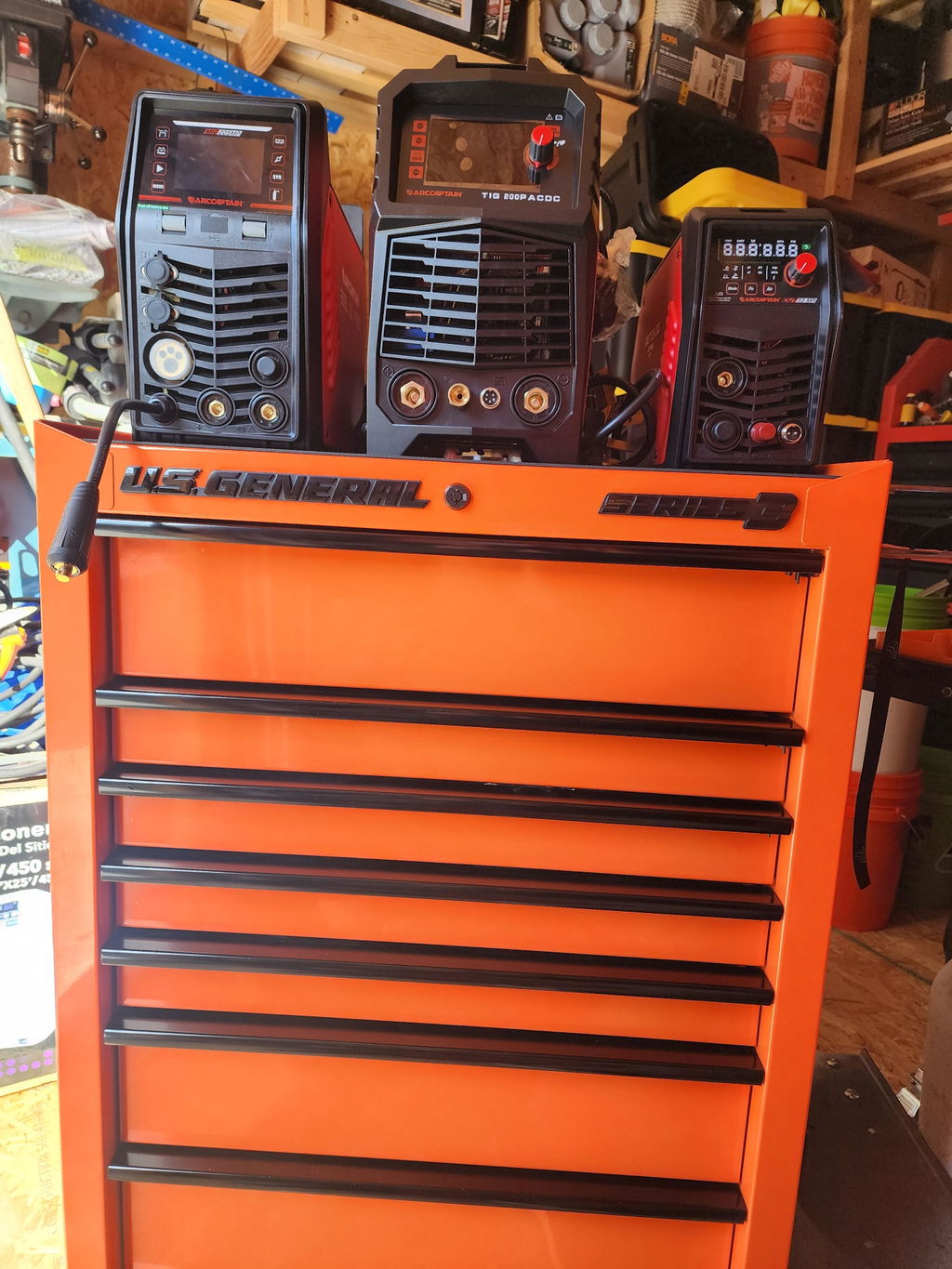

Everything bolted up super easy! Hold both my Lincoln welders and the box has plenty of space for all the consumables. I lowered the bottle mount to fit smaller bottles. Everything is stout and sturdy. Honesty a great product
