HF End Cabinet - Single Tank Welding Cart Kit
HF End Cabinet - Single Tank Welding Cart Kit
Couldn't load pickup availability

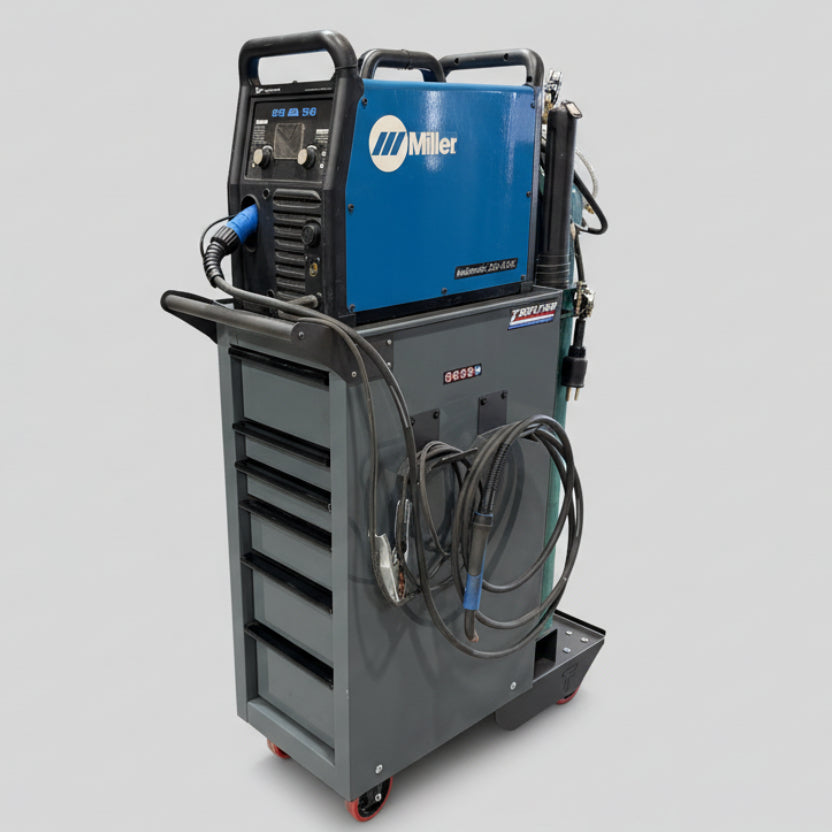

This is a welding cart kit for the Harbor Freight Series 3 15" End Cabinet. Built from 11-gauge steel, the top mount uses a ratchet strap to secure your tank, plus 2 TIG rod holder locations sized 2-1/8" to fit standard 2" rod holders.
No welding required
Secure the top mount with rivets, sheet metal screws, or the included 5/16" rivnuts.
Features

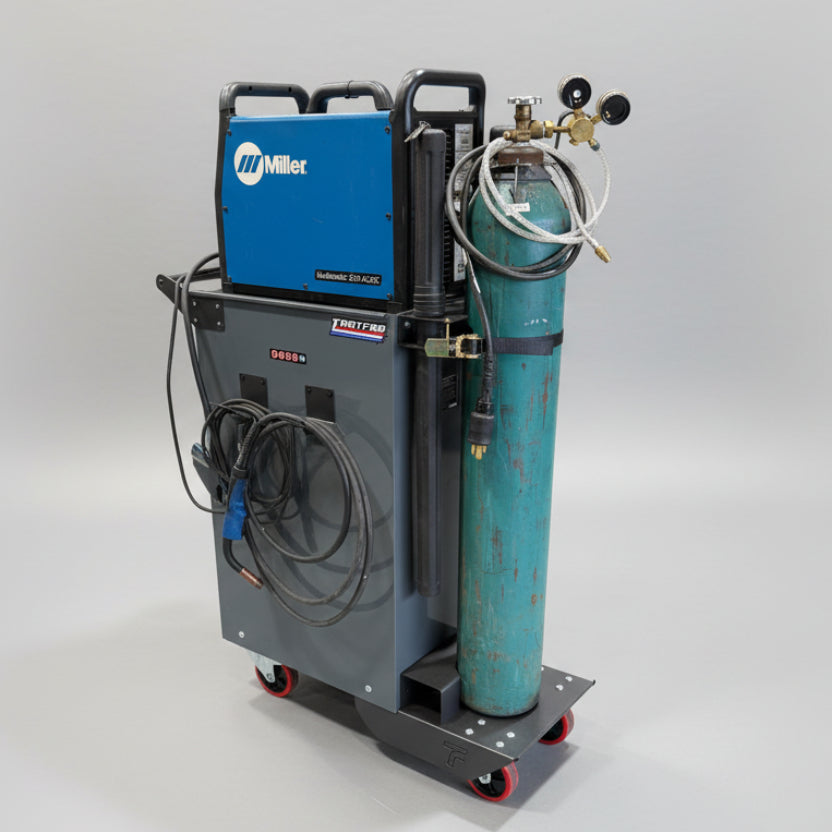

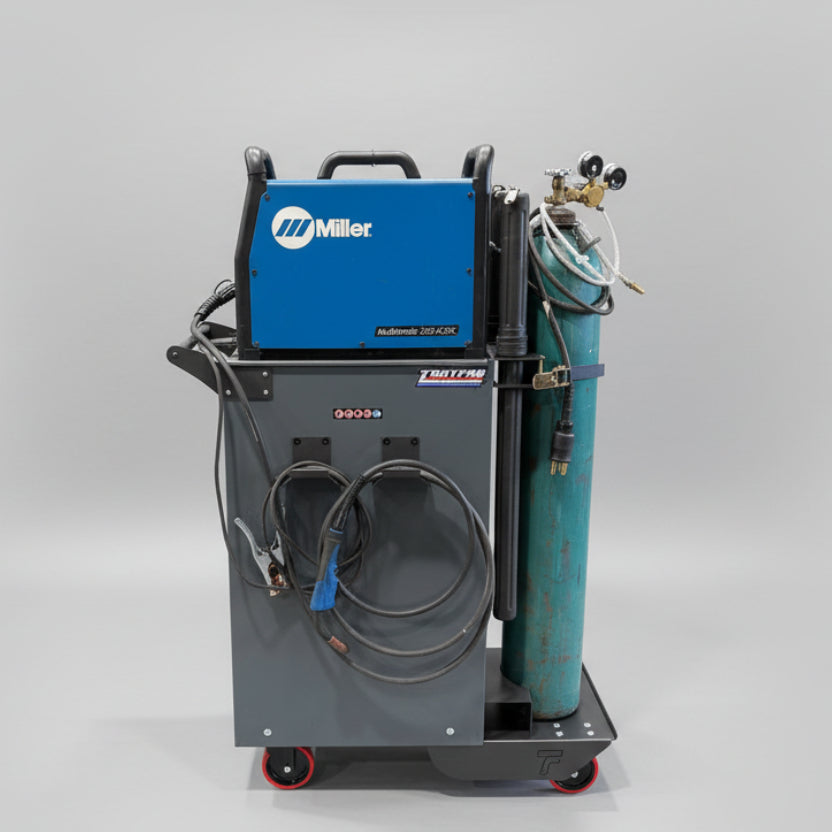

Ratchet-strap top mount — securely holds one tank up to 9-1/4" (T) size
2 TIG rod holder ports — sized 2-1/8" to fit standard 2" rod holders
Built from 11-gauge steel for durability
Choose your caster setup at checkout
Raw, unpainted steel
Tank Capacity
Accepts tanks up to 9-1/4" (T) size
Compatibility
Harbor Freight Series 3 15" End Cabinet
What's included
Top and bottom tank mounts, ratchet strap, 2 - 5/16" rivnuts
Not included: cart, machines, tanks, handle, and lead hangers (sold separately)
Installation note: Harbor Freight carts can vary slightly between units, so you may need to make small adjustments. Leave all mounts loose until everything is in place, then tighten down.
