HF End Cabinet - Quad Tank Welding Cart Kit (No Casters)
HF End Cabinet - Quad Tank Welding Cart Kit (No Casters)
Couldn't load pickup availability

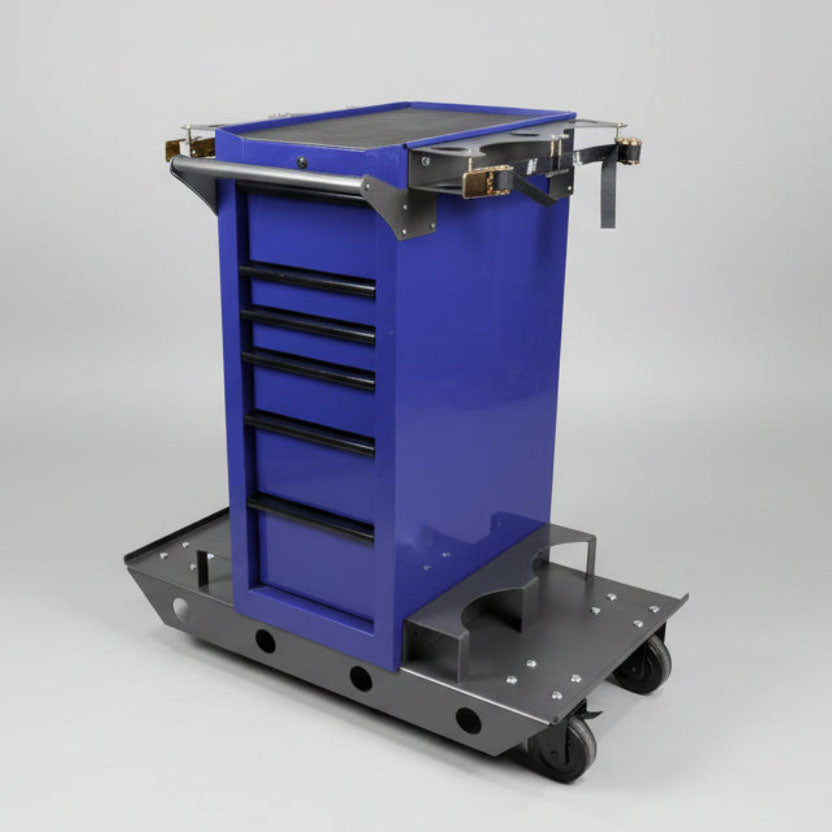

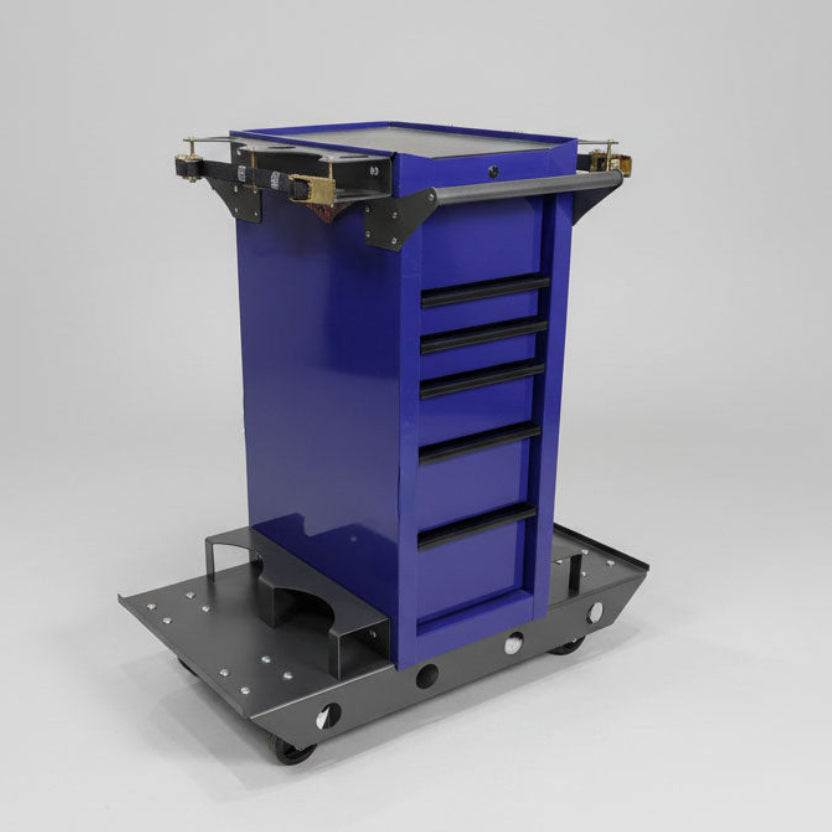

This is a welding cart kit for the Harbor Freight Series 3 15" End Cabinet. Built from 11-gauge steel, the bottom deck holds up to four 9-1/4" tanks, with 2 top mounts using ratchet straps to secure your bottles, plus 3 TIG rod holder locations sized 2-1/8" to fit standard 2" rod holders.
This kit does not include casters
We include the bolts to attach your own casters — see the recommended Harbor Freight caster links below before ordering.
Features

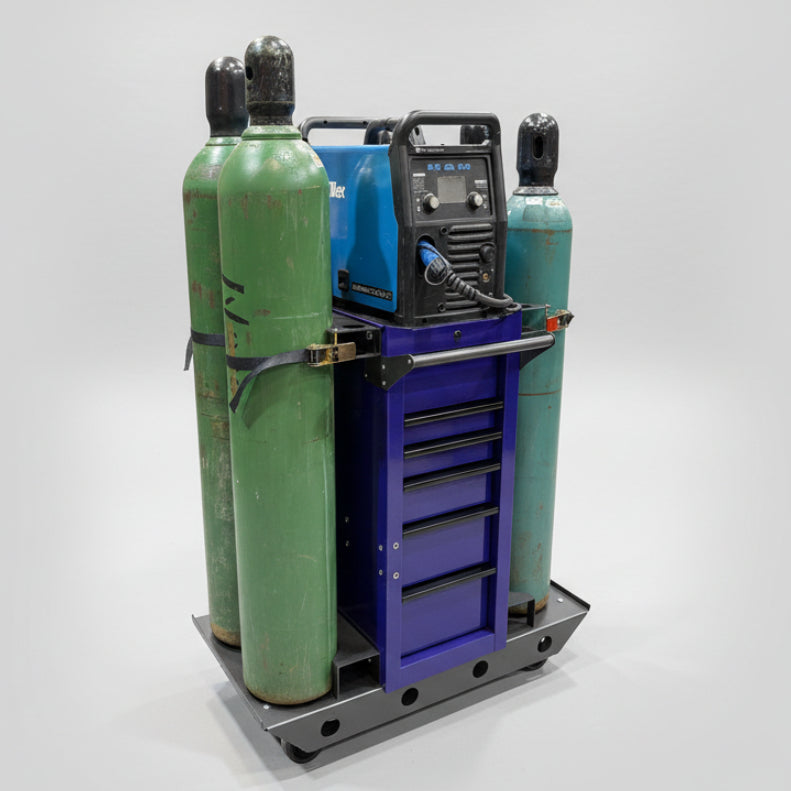

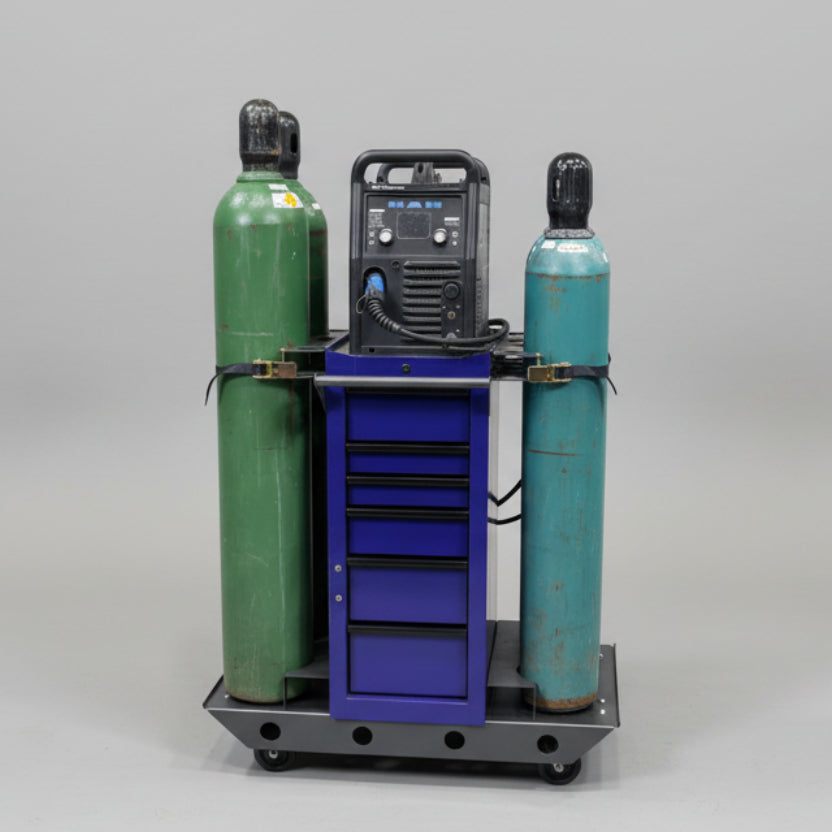

Bottom deck holds up to (4) tanks, 9-1/4" size or smaller
2 ratchet-strap top mounts to secure your bottles
3 TIG rod holder ports — sized 2-1/8" to fit standard 2" rod holders
Built from 11-gauge steel for durability
Top mount secures with rivets, sheet metal screws, or the included 5/16" rivnuts
Raw, unpainted steel
Dimensions
Kit overall size: 21" W x 39" L x 7" H
Adds 12-1/8" to the tank side once installed
Compatibility
Harbor Freight Series 3 15" End Cabinet
What's included
Bottom deck, 2 top mounts with ratchet straps, 2 - 5/16" rivnuts, caster mounting bolts
Not included: casters, cart, tanks, machines, and accessories (sold separately)
Installation note: Harbor Freight carts can vary slightly between units, so you may need to make small adjustments. Leave all mounts loose until everything is in place, then tighten down. We recommend all-swivel casters for this kit — see Harbor Freight's swivel casters (SKU 604990) or fixed casters (SKU 604989).
