HF 5 Drawer Mechanics Cart - Single Tank Welding Cart Kit
HF 5 Drawer Mechanics Cart - Single Tank Welding Cart Kit
Couldn't load pickup availability

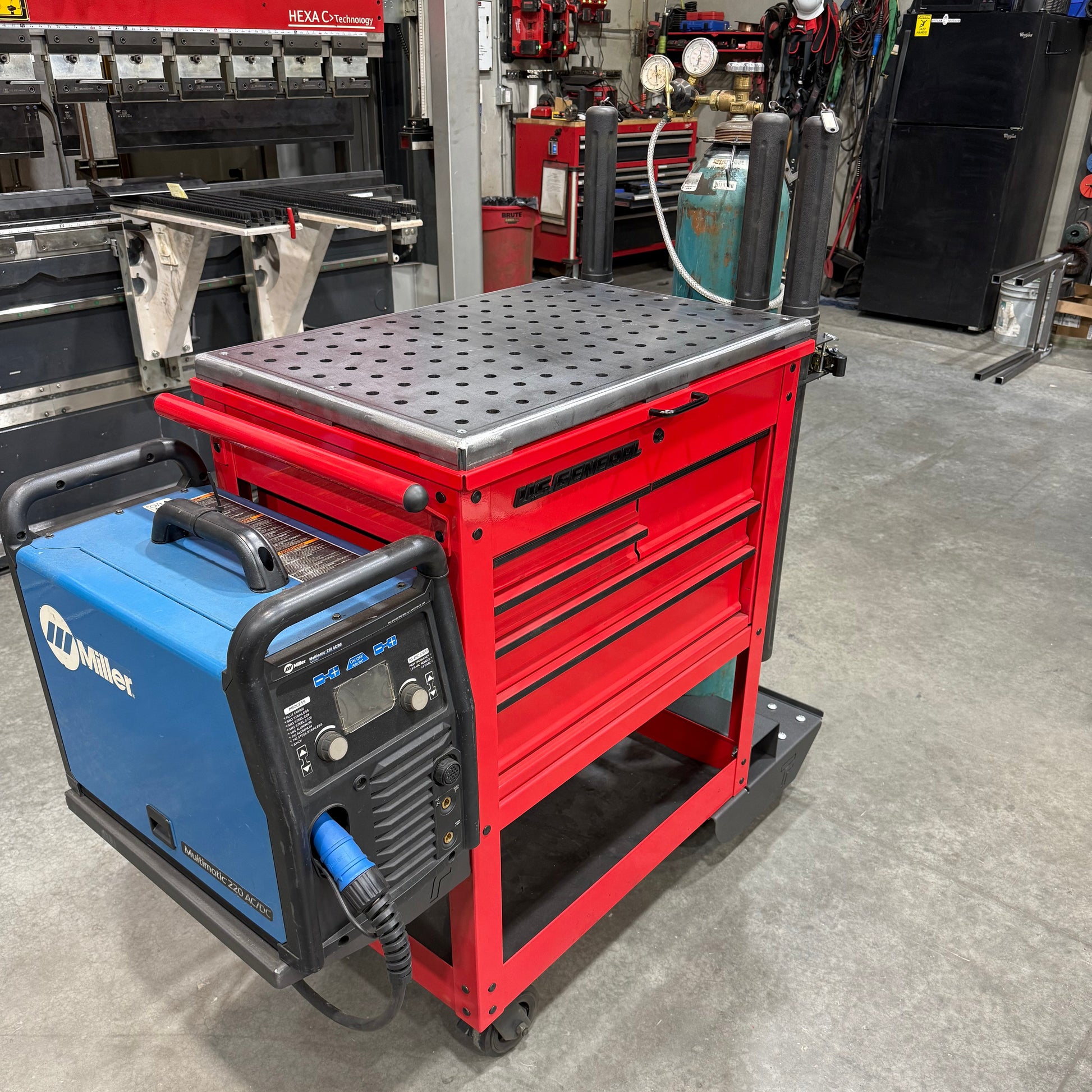

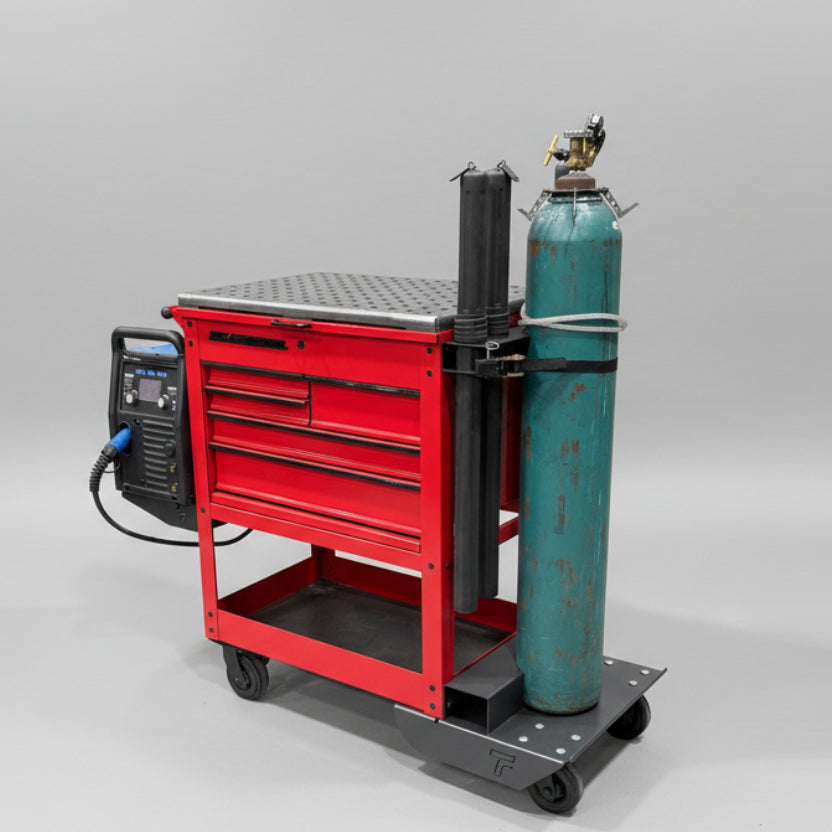

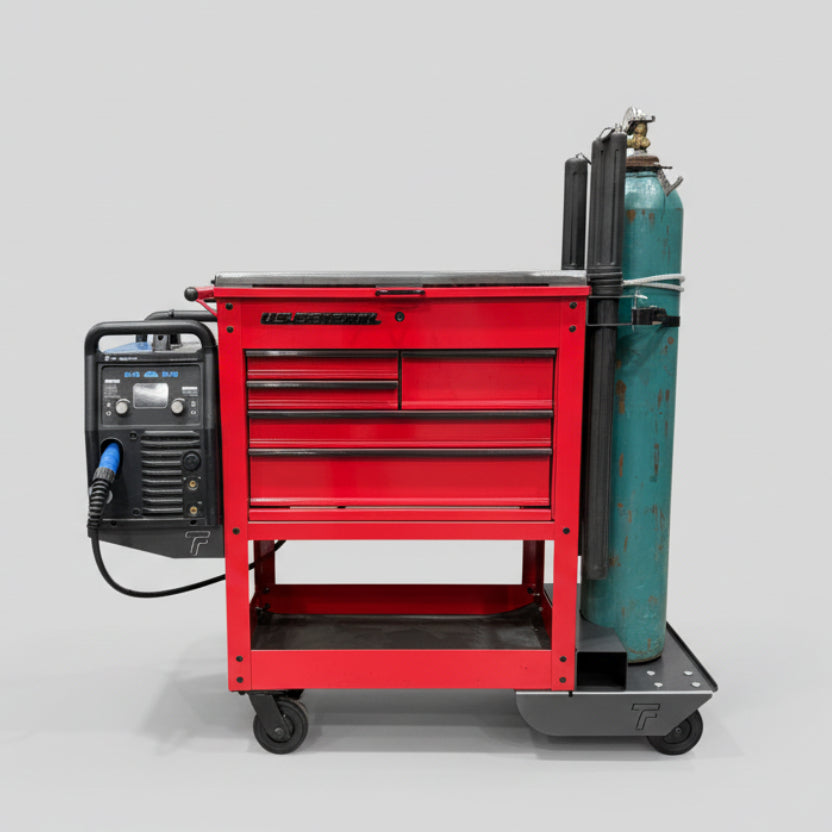

Convert your Harbor Freight 5 Drawer Mechanics Cart (SKU 70698) into a single-tank welding cart. This kit bolts on using the cart's existing holes — no welding required — and includes a top mount with a ratchet strap to secure your bottle, plus built-in TIG rod holder mounts.
No welding required
Bolts directly onto your cart's existing holes for a straightforward install.
Features

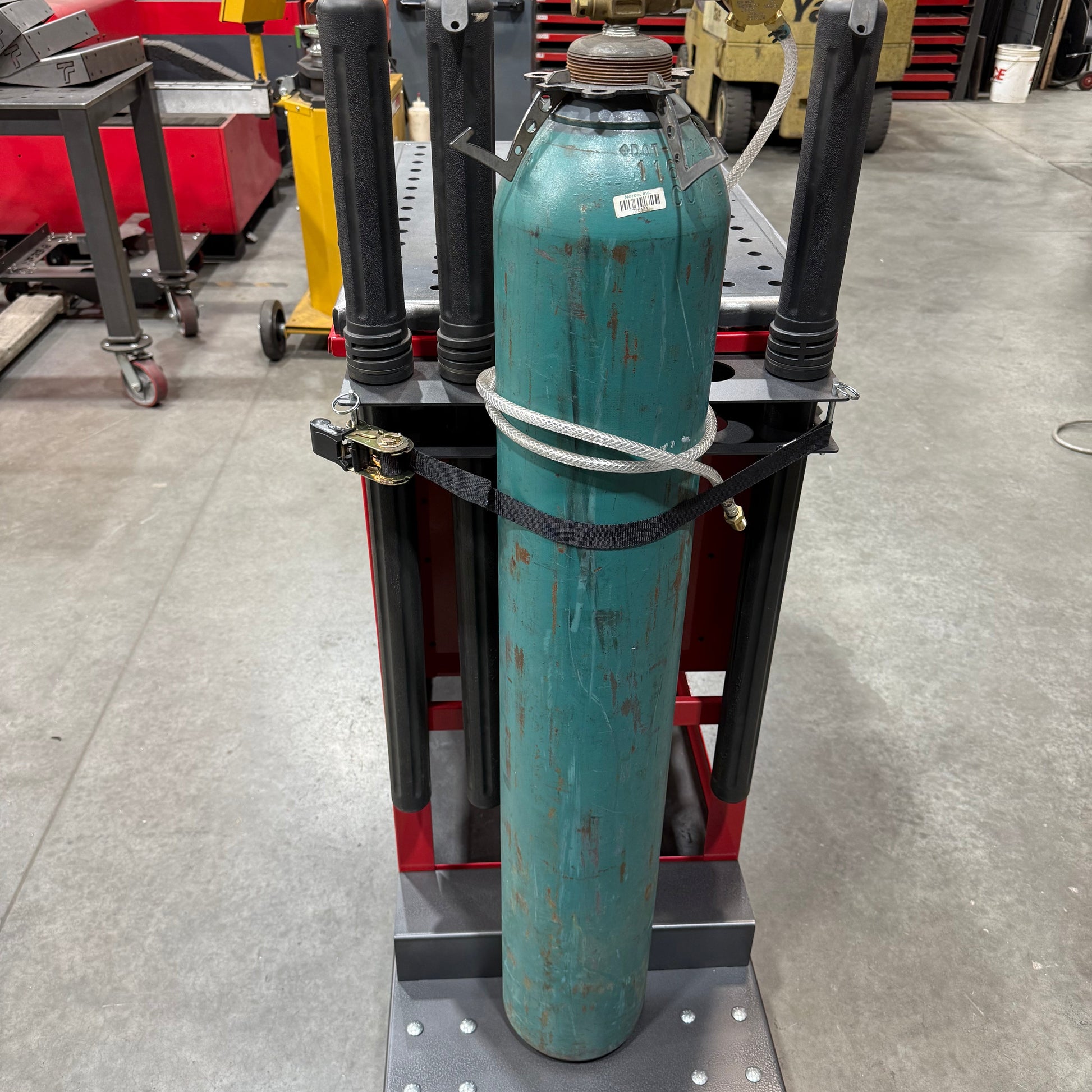

Ratchet-strap top mount — securely holds one tank up to 9-1/4" (T) size
4 TIG rod holder ports — sized 2-1/8" to fit standard 2" rod holders
No-weld install — uses the cart's existing mounting holes
Caster relocation hardware included to move casters to the new bottom deck
Raw, unpainted 11-gauge steel
Dimensions
20-3/8" W x 16-7/8" L x 7" H
Adds 11-3/4" to the tank side once installed
Compatibility

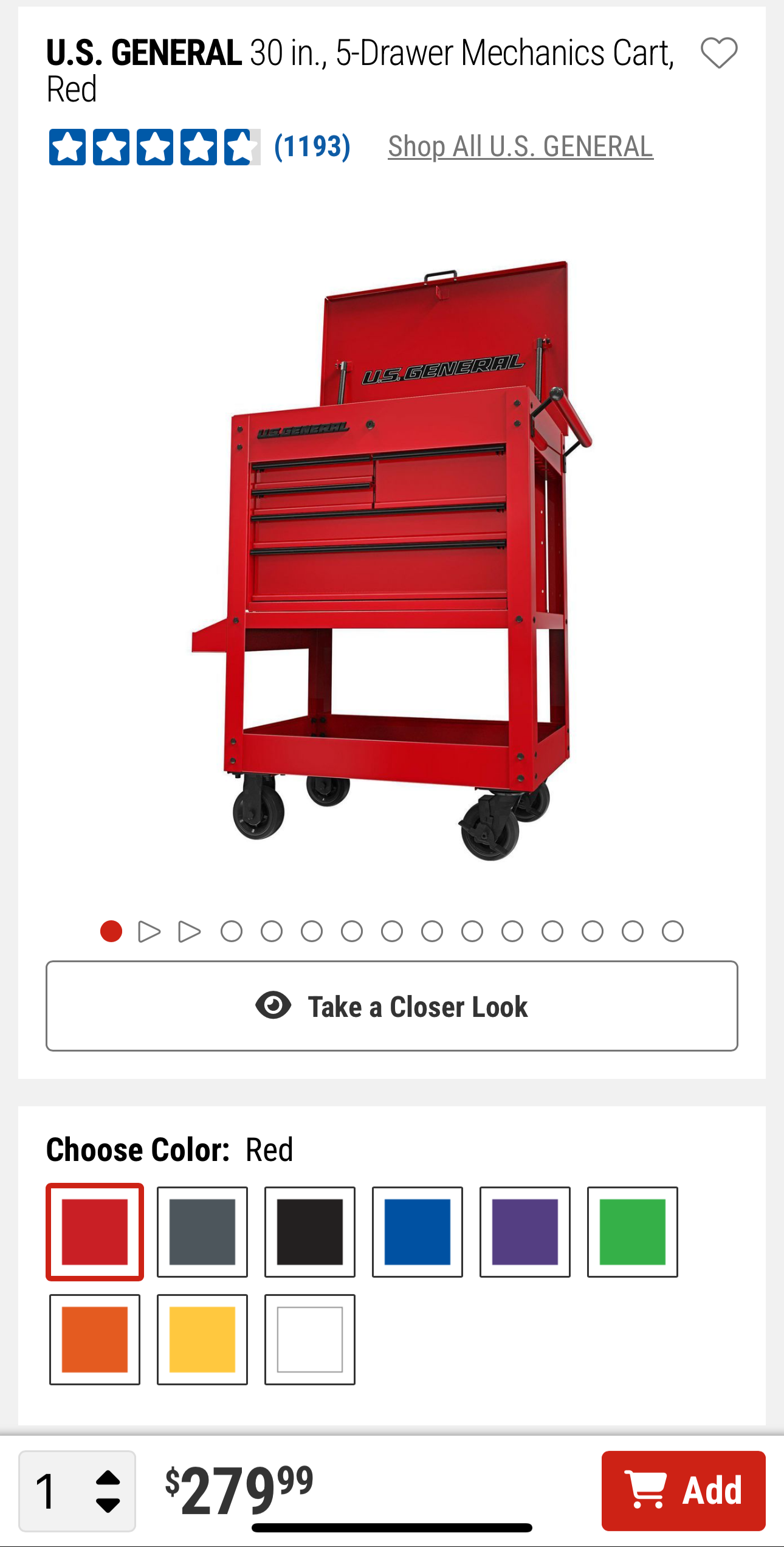

Harbor Freight Mechanics Cart 5 Drawer (SKU 70698)
What's included
Top and bottom tank mounts, ratchet strap, caster relocation hardware
Not included: tool box, tank, machines, shelf, welding top, and lead hangers (sold separately)
Installation note: Harbor Freight carts can vary slightly between units, so you may need to ream out a hole or slot for a proper fit. Leave all mounts loose until everything is in place, then tighten down.
