HF 4 Drawer Tech Cart - Single Tank Welding Cart Kit
HF 4 Drawer Tech Cart - Single Tank Welding Cart Kit
252 GIVEAWAY ENTRIES
Couldn't load pickup availability

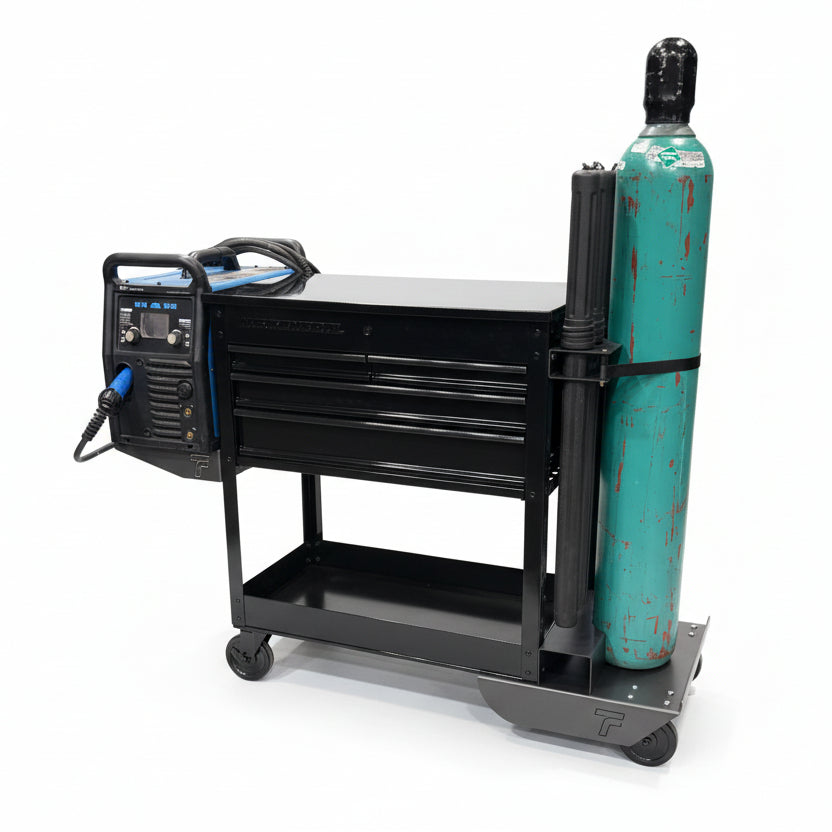

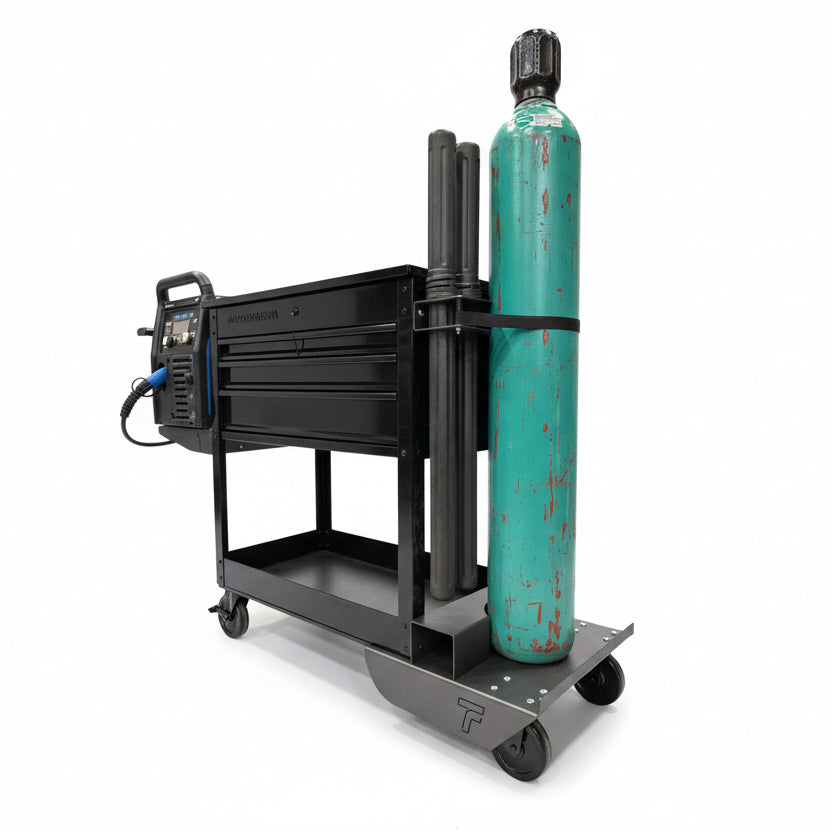

Convert your Harbor Freight 4 Drawer Tech Cart (SKU 59572) into a single-tank welding cart. This kit bolts on using the cart's existing holes — no welding required — and includes a top mount with a ratchet strap to secure your bottle, plus built-in TIG rod holder mounts.
No welding required
Bolts directly onto your cart's existing holes for a straightforward install.
Features
Ratchet-strap top mount — securely holds one tank up to 9-1/4" (T) size

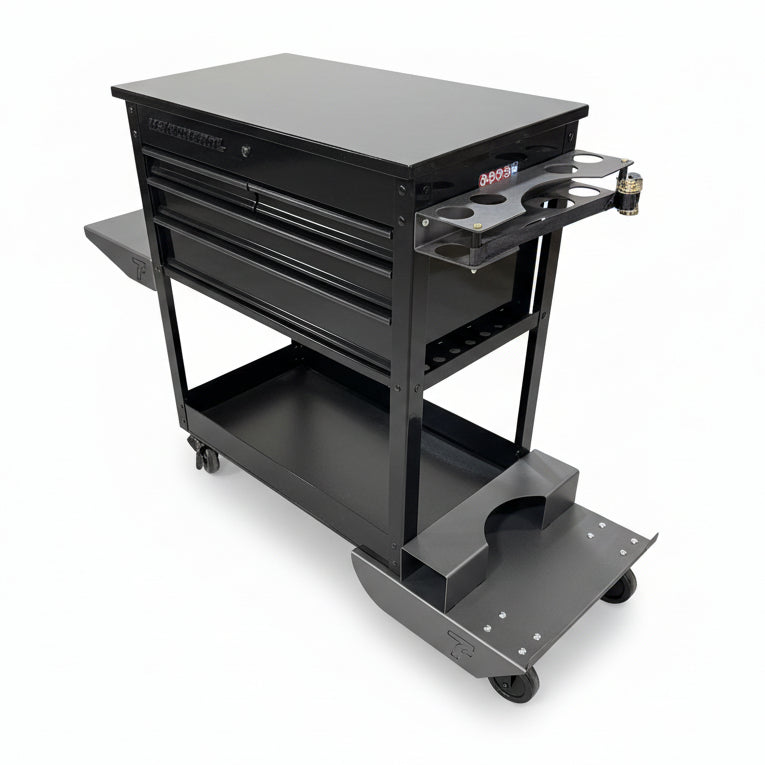

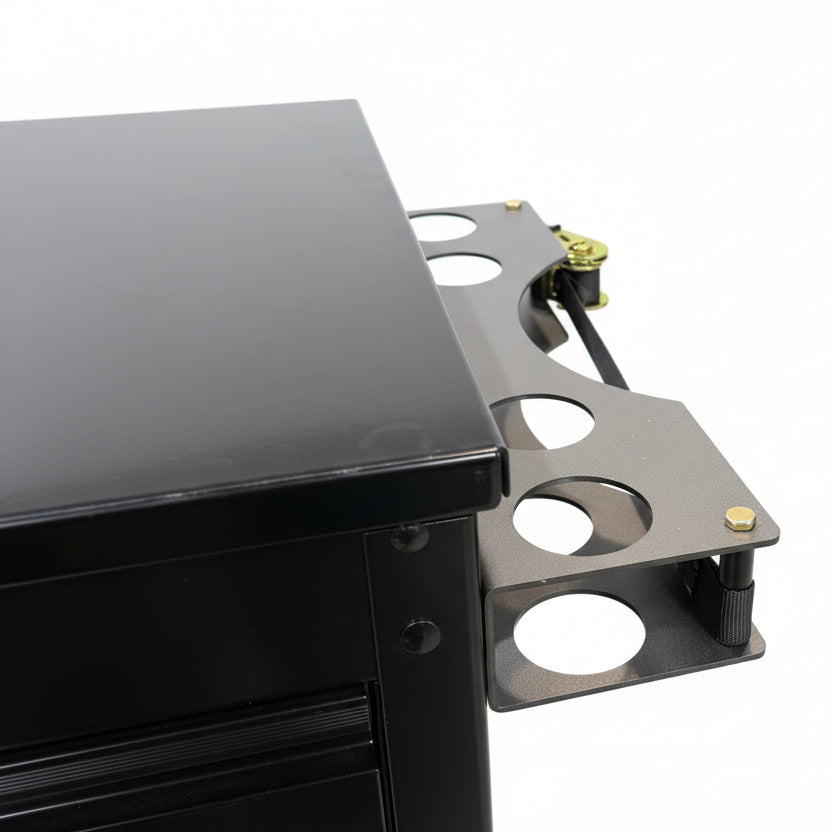

4 TIG rod holder ports — sized 2-1/8" to fit standard 2" rod holders
No-weld install — uses the cart's existing mounting holes
Caster relocation hardware included to move casters to the new bottom deck
Raw, unpainted 11-gauge steel
Dimensions
20-3/8" W x 16-7/8" L x 7" H
Adds 11-3/4" to the tank side once installed
Compatibility
Harbor Freight 4 Drawer Tech Cart (SKU 59572)
What's included

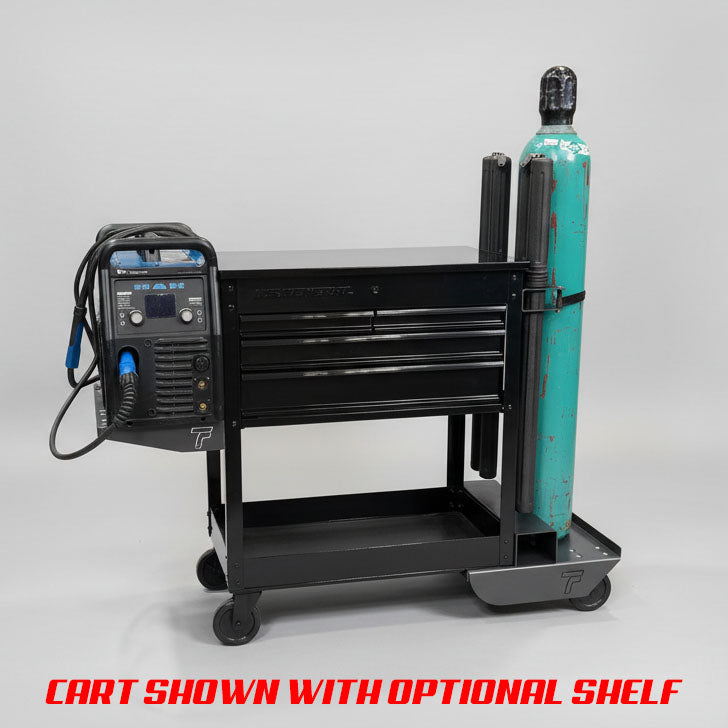

Top and bottom tank mounts, ratchet strap, caster relocation hardware, plus any shelf, lead hangers, or welding top you choose above
Not included: tool box, tank, machines
Installation note: Harbor Freight carts can vary slightly between units, so you may need to ream out a hole or slot for a proper fit. Leave all mounts loose until everything is in place, then tighten down.
