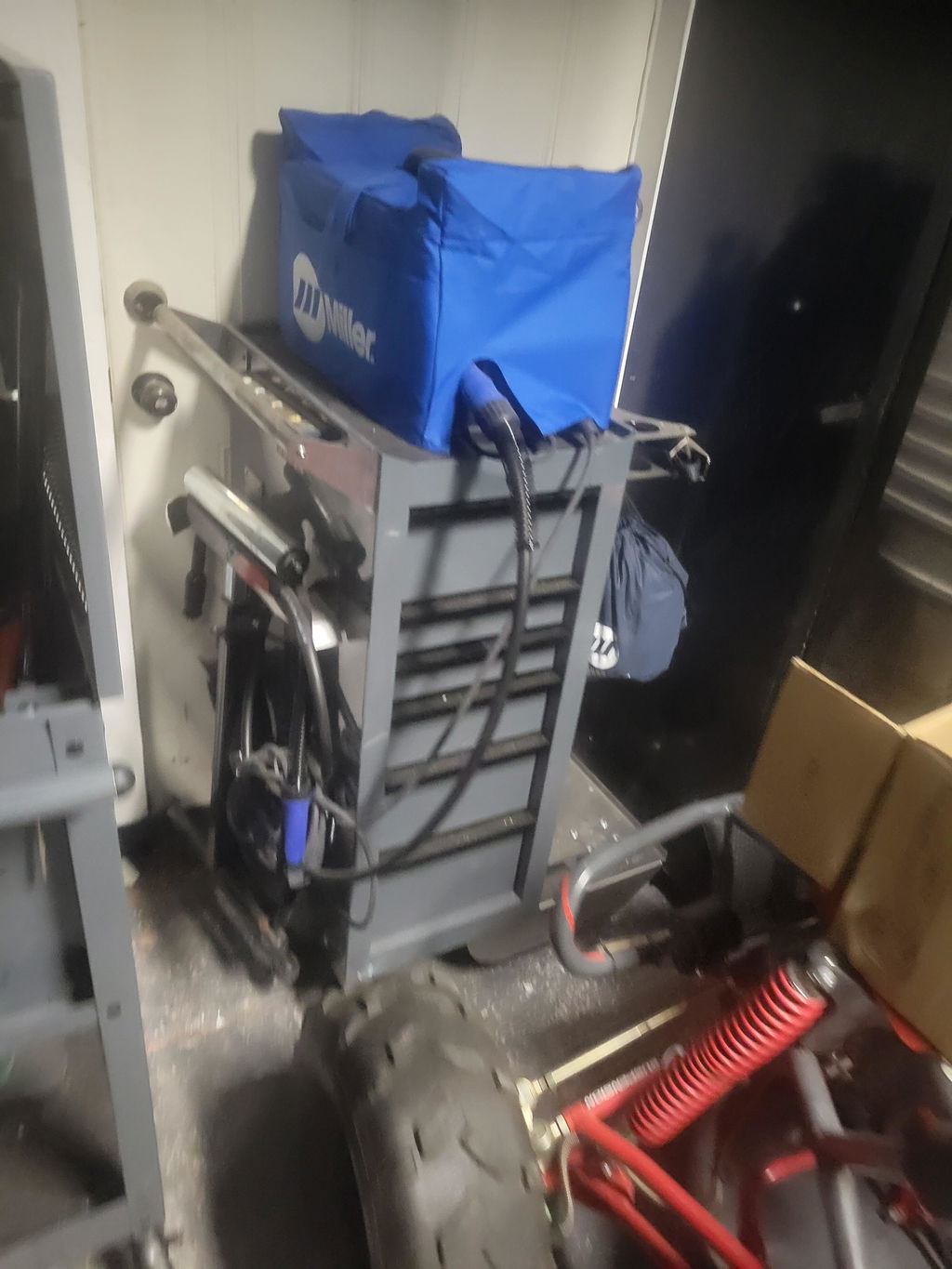

HF End Cabinet Kit Dual Tank (With Casters)

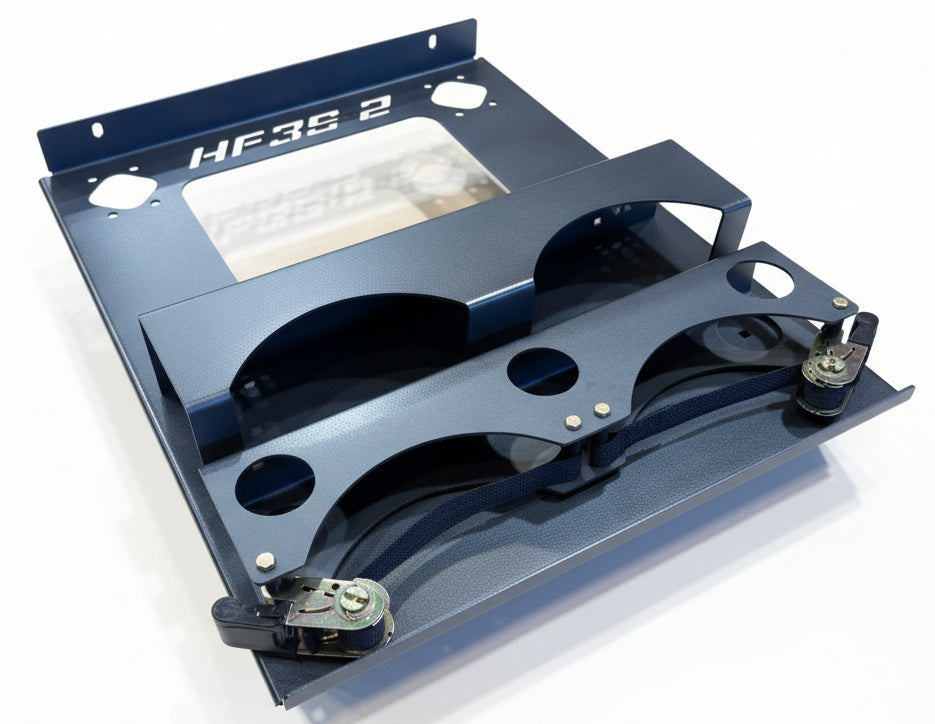

This kit is for the top mount ratchet strap and bottom mount to secure the tanks. The shelf and lead hangers are sold separately.

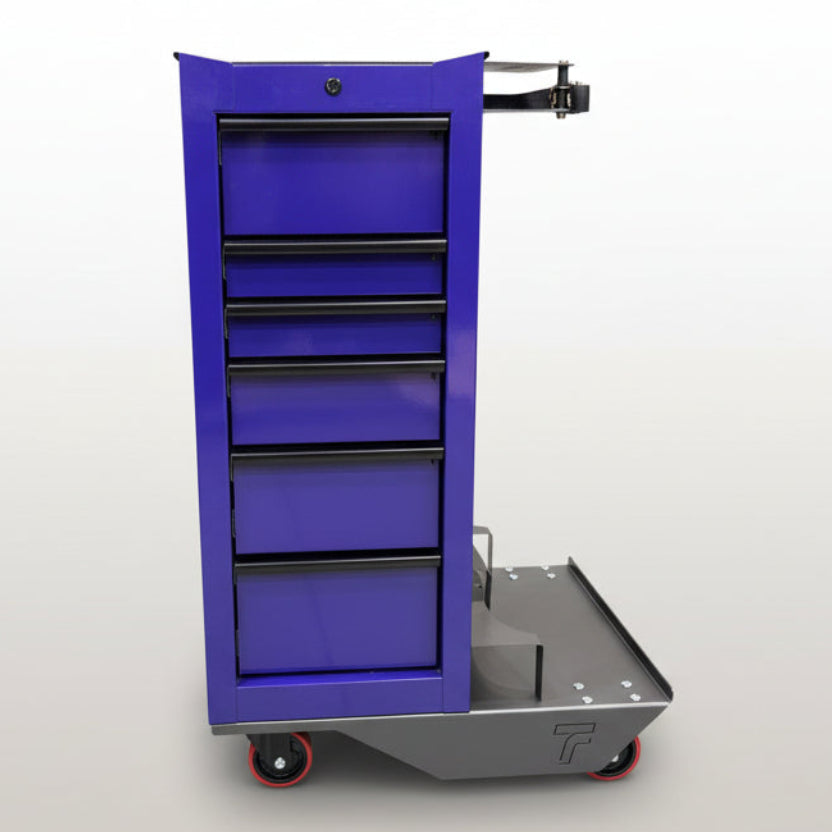

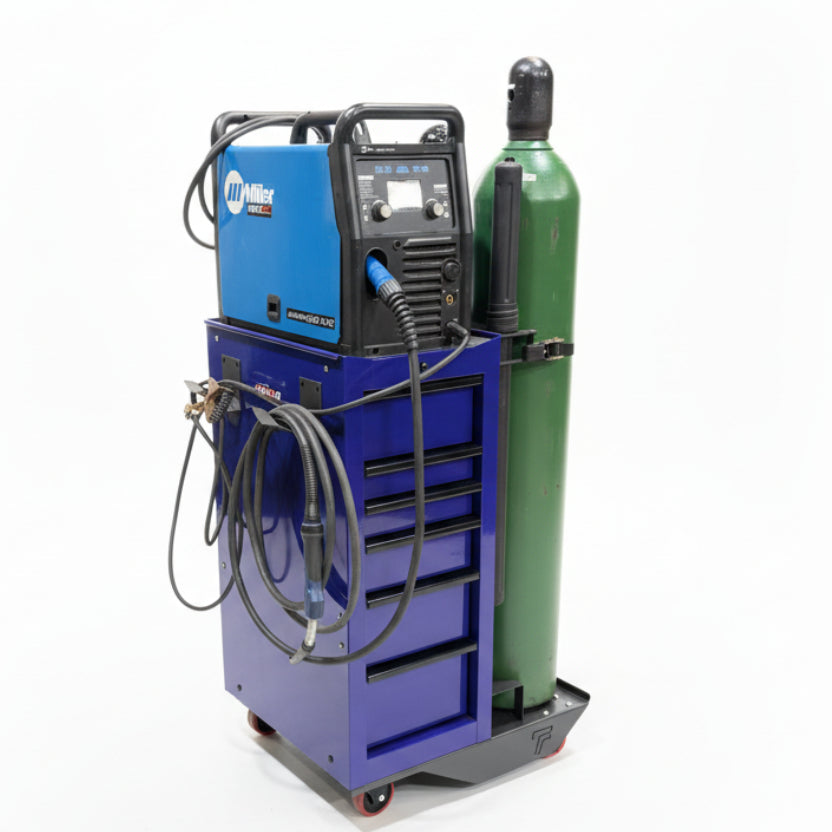

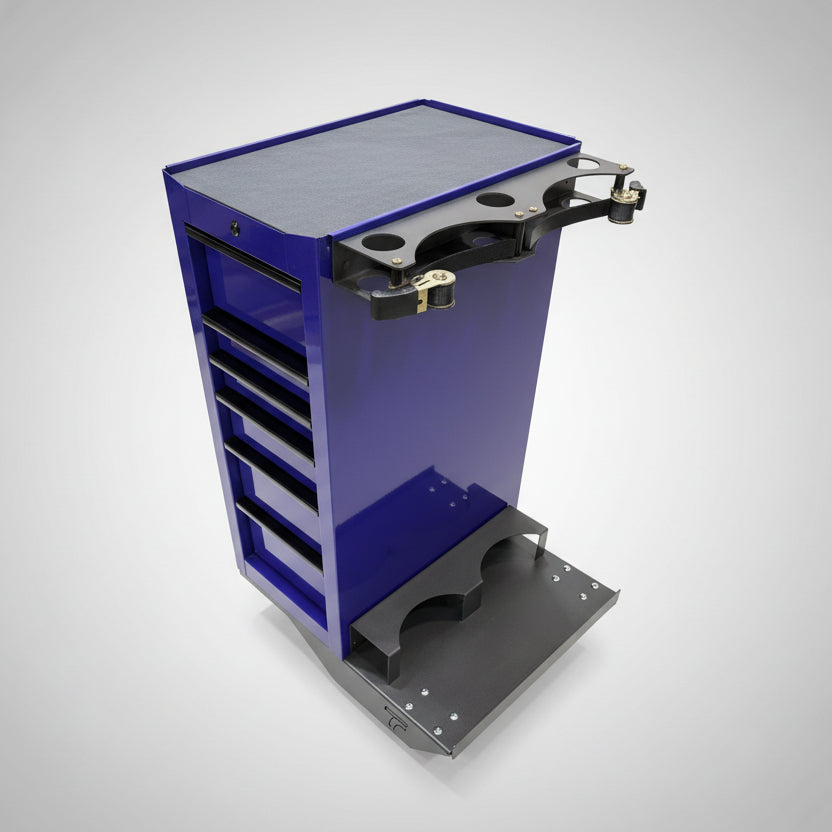

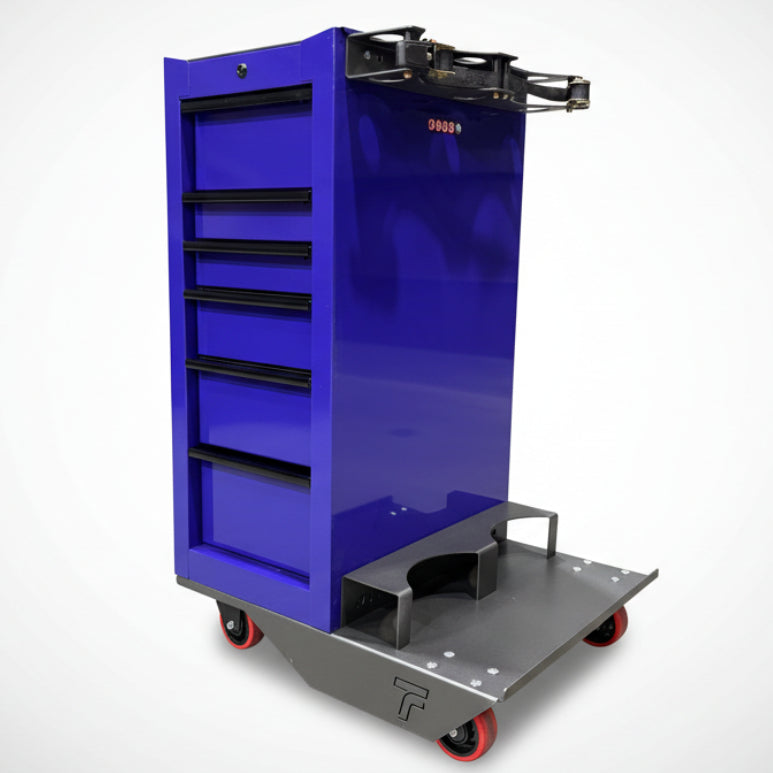

This is a welding cart kit for the Harbor Freight Series 3 15" End Cabinet. It's built out of 11 gauge steel for strength. The kit can accepts up to 9-1/4" (T) tanks. The top mount has ratchet straps to secure your bottles and 3 places for tig rod holders. The holes measure 2-1/8" to easily fit in your 2" tig rod holder.

You'll have different options for casters when you order. If the casters we have in the pictures are not available we will change over to something similar without notice, but we will always try and get the casters in the pictures.

Hardware is included. The top mount will need to be secured with rivets, sheet metal screws, or rivnuts. (we will include (2) 5/16" rivnuts).

*We try our best to give enough adjustment in holes and slots so you don't have to enlarge holes or grind on your cart. Harbor freight carts are not exactly the same and you may have to make small adjustments. It's always best to leave your cart mounts loose until everything is in place and then tighten everything down.

Dimensions: The dimensions of the tool box with the kit is 26-1/2" X 22". The kits overall size is 20-3/8" wide X 16-7/8" long and 7"tall. Once installed, the kit wall add 11-3/4" to the tank side of your cart.

This kit is raw steel and unpainted.

*Cart, Machines, tanks, etc. not included
