Blank Single Tank Welding Cart Kit (HF4)
Blank Single Tank Welding Cart Kit (HF4)
Couldn't load pickup availability
Matches our 4 Drawer single-tank kit design, but with the mounting holes and caster mounts removed so you can drill your own to fit any cart or caster setup. Includes a ratchet-strap top mount to secure your bottle, plus built-in TIG rod holder mounts.
Universal fit — drill your own holes
No pre-drilled mounting holes, so this kit works with carts and casters outside our standard fitment.
Features
Ratchet-strap top mount — securely holds one tank up to 9-1/4" (T) size

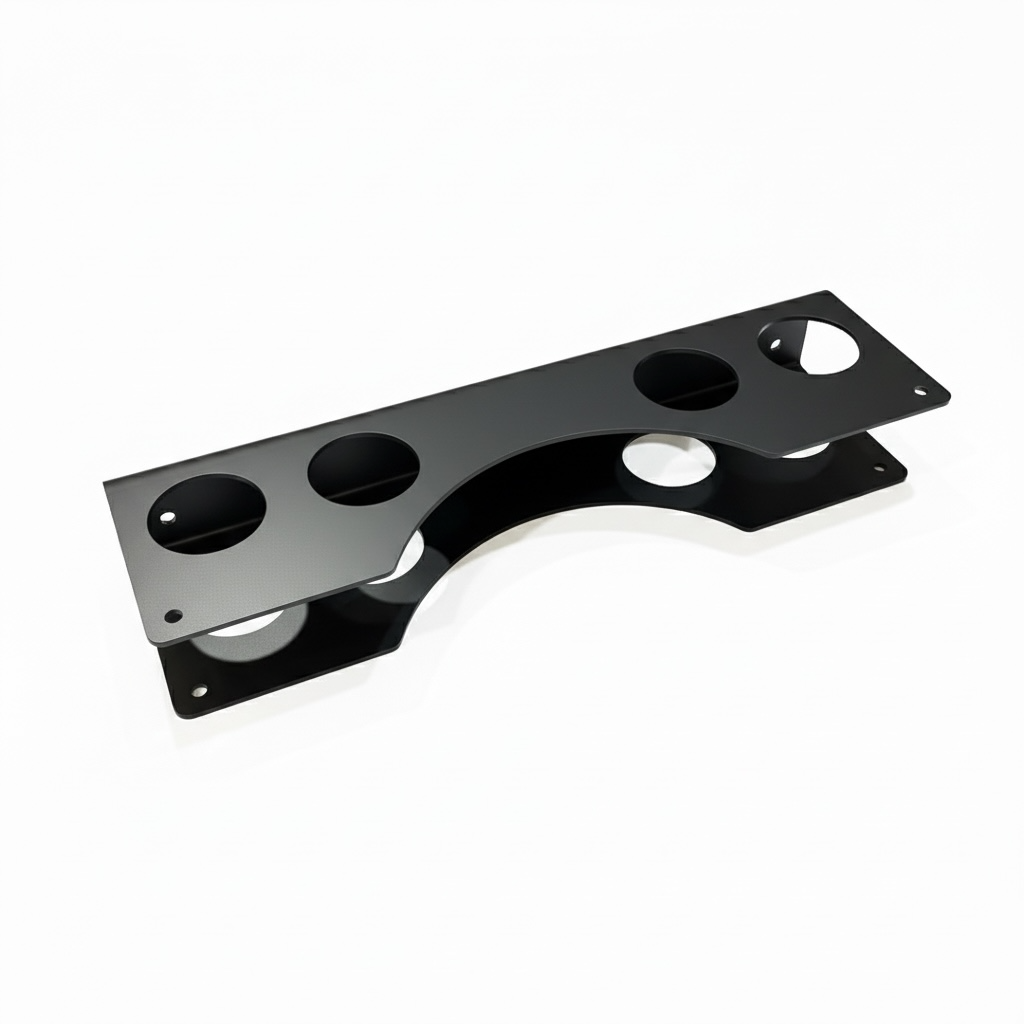

4 TIG rod holder ports — sized 2-1/8" to fit standard 2" rod holders
No pre-drilled holes — drill your own to match your cart and casters
Raw, unpainted 11-gauge steel
Dimensions

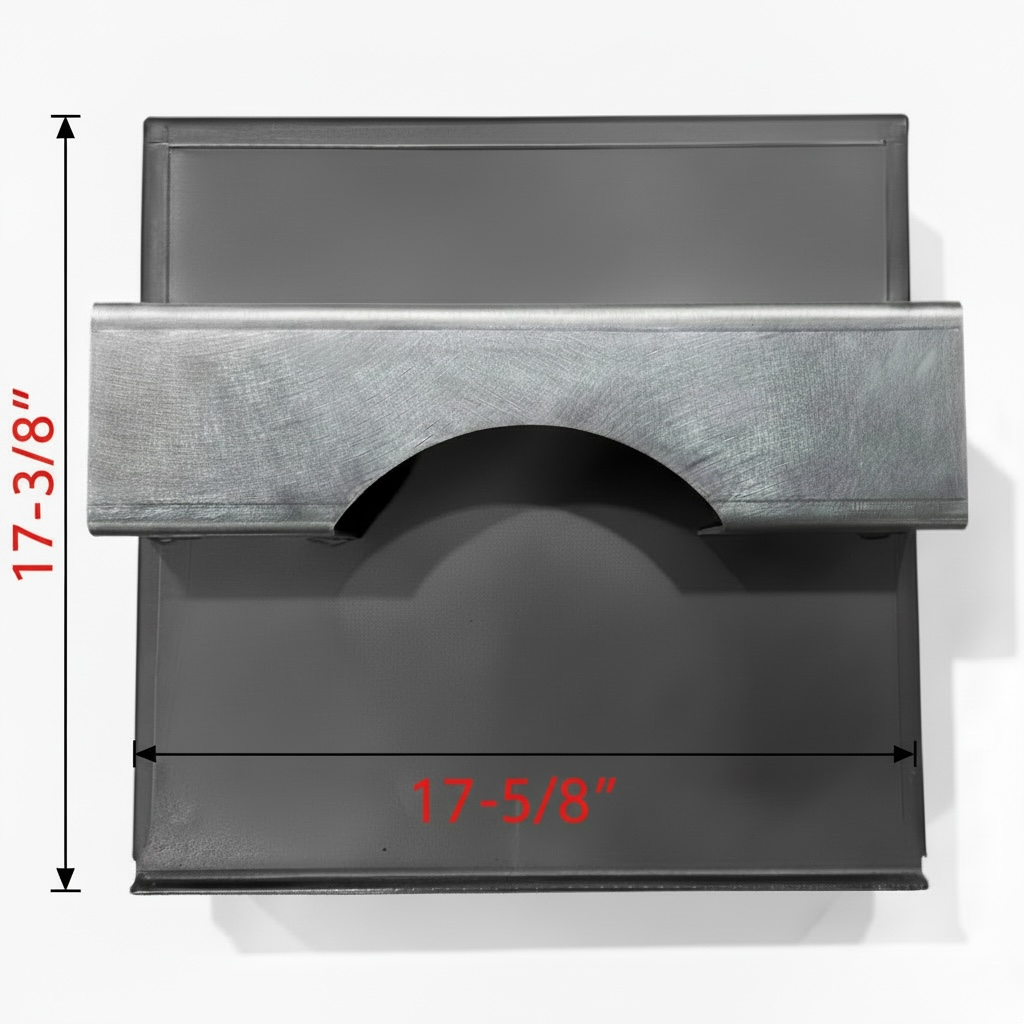

17-5/8" W x 17-3/8" L x 7" H
Adds 12-1/8" to the tank side once installed
Compatibility
Universal — drills to match any cart or caster setup
What's included
Top and bottom tank mounts with ratchet strap
Not included: tool box, tank, machines, mounting hardware for drilling
Installation note: Since this kit has no pre-drilled holes, you'll need to mark, drill, and mount it to fit your specific cart and caster layout.
