7" Bullet Hinge Jig Kit (4 pack)
7" Bullet Hinge Jig Kit (4 pack)
Couldn't load pickup availability
This 3D-printed jig sets up bullet hinges with a .787" (25/32") barrel — we've found it works on both 6" and 7" bullet hinges. It sets the hinge in the correct position and offset, ready to tack in place. Comes with 4 jig sets so you can set 4 hinges at the same time.
Fits both 6" and 7" bullet hinges
One jig, two hinge sizes — as long as the barrel matches .787" (25/32").
Features
Sets the hinge's position and offset for tacking
4 jig sets included — tack 4 hinges at the same time
Removable 1/8", 3/16", and 1/4" shims for a precise door-to-frame gap
Magnetic back holds the jig securely to steel
Hinge Fit

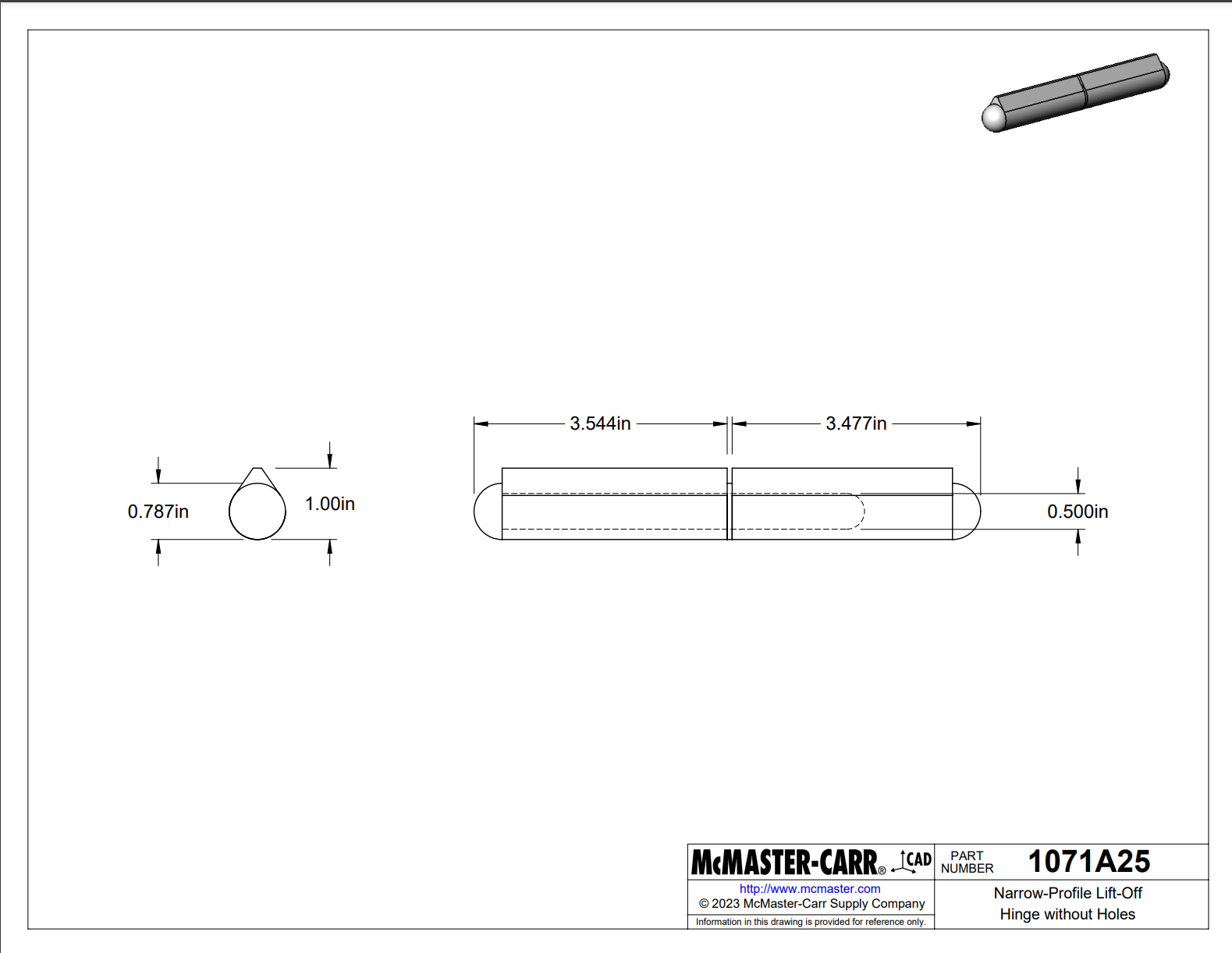

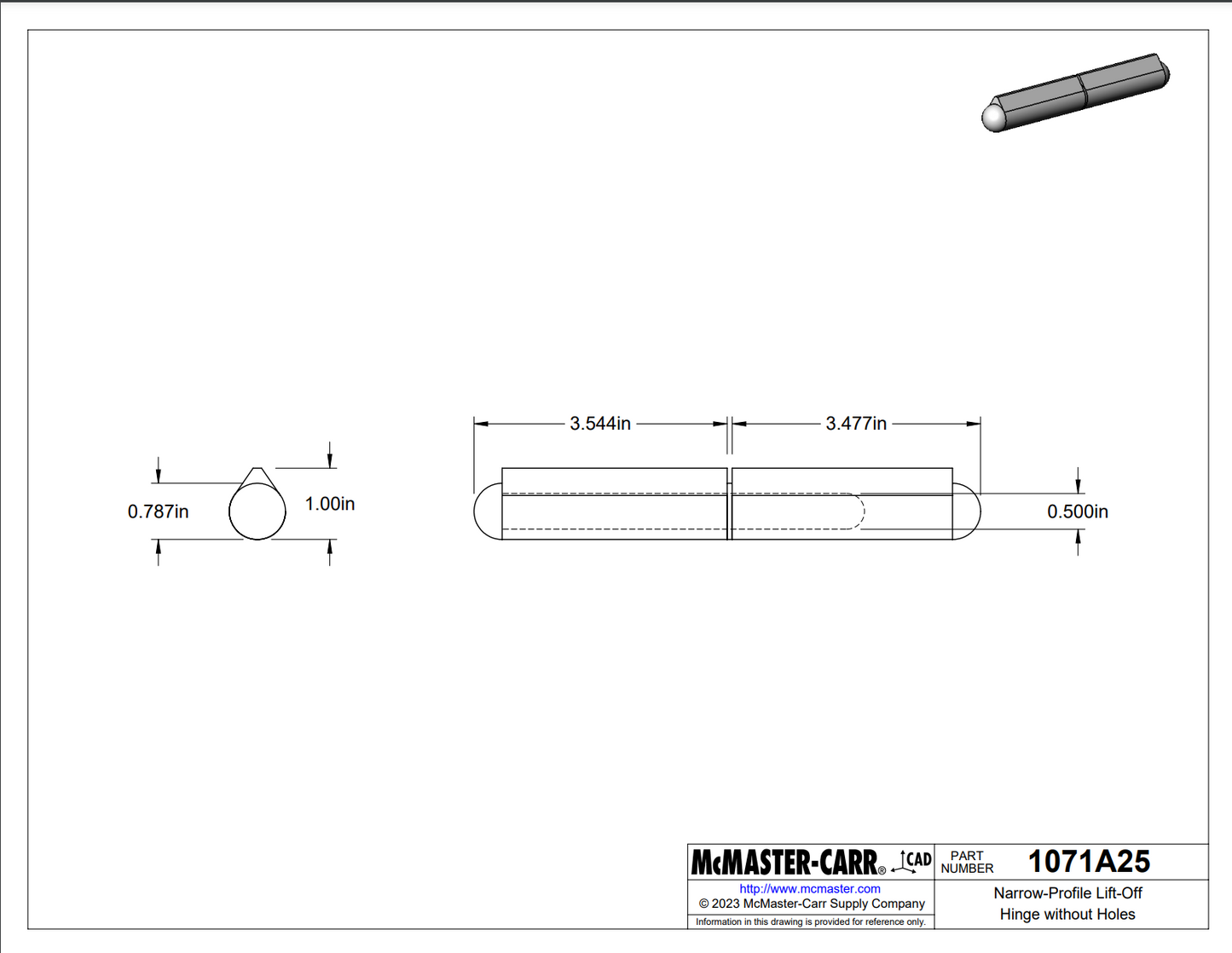

6" or 7" bullet hinge with a .787" (25/32") barrel
Pack Includes
4 jig sets — sets 4 hinges at once
What's included

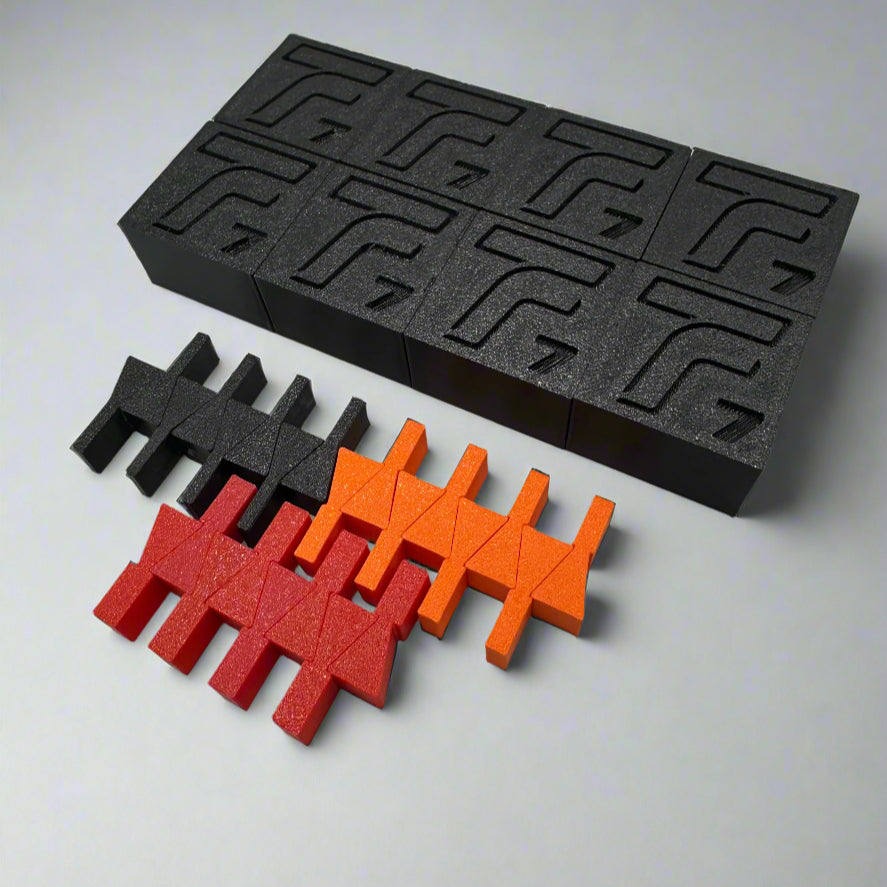

4 jig sets with removable shims
Not included: hinges, welder
